Solaira AS1200 Series All Season Residential Outdoor Quartz Infrared Patio Heater (120 or 240 Volts)

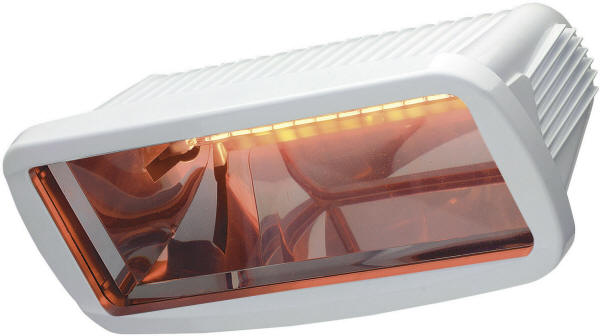

Also available in white (great for pool
areas)
We are an authorized distributor for Solaira (Inforesight Consumer Products
Inc.)
Links to other Solaira Products:
 |
Cosy All Weather Quartz Heater. 120 or 240 Volts for outdoor or indoor area’s. Rain and snow proof. 120 Volt models have 15' cordset with household plug. |
 |
Commercial All Weather High Output Outdoor Quartz Heater. 120 or 240 Volts. Weatherproof - Water and snow resistant construction. 120 Volt includes a 6 foot cord, no plug included. |
 |
Commercial Quartz Heater. 240 Volts with no cord and plug. Includes mounting bracket. 1,500 or 2,000 Watts. Instant heat for indoor or protected outdoor uses. Metal safety guard. |
 |
Cosy Heat Quartz Heater. For indoor/protected outdoor covered area’s. 240 Volt, 1,500 or 2,000 Watt with no cord and no plug and with a terminal box ready to be direct/hard wired. |
 |
Alpha High Output Commercial/Industrial Heater for outdoor or indoor area’s (1500, 2000, 3000, 4000, 4500 and 6000 Watt), can be installed in tandem for up to 18,000 watts. Rain and snow proof. Safety glass. 120 Volt: Power Cord Length: 15 feet, plug included (direct wired heater) Terminal box is included. 240 Volt: Power cord, Length: 6 feet. plug NOT included (direct wired heater) Terminal box is included |
 |
Commercial High Output (HOS) 1,500 Watt Indoor/Protected Outdoor Quartz Heater. 120 or 240 Volts. 120 Volt models have 6’ of cable (no plug). Not for use in exposed outdoor areas. |
 |
120/240 Variable Volt Control for Quartz Heaters. Indoor/outdoor weatherproof, digital, solid-state power control adjusts heat output from 10% to 100%. The on/off switch with “SOFT START” feature will bring the power up slowly to the emitter. Up/down controls, heater level on the LED front panel. 115-120 VAC up to 1600 Watt, 208-240 VAC up to 3200 Watt. |
These heaters warm like the sun, in other words, they warm the people and objects and not the air between making it the only form of heat that does not blow away. These heaters emit both radiant heat and a pleasant golden light.
Available in either:
|
|

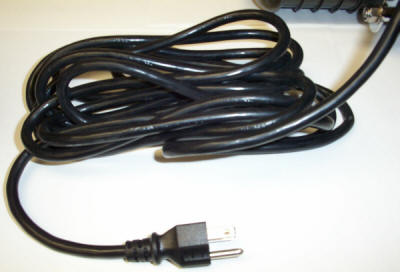

Heavy plug and cord (120 Volt model only).
The 240 Volt model has a heavier gauge cord and no plug.

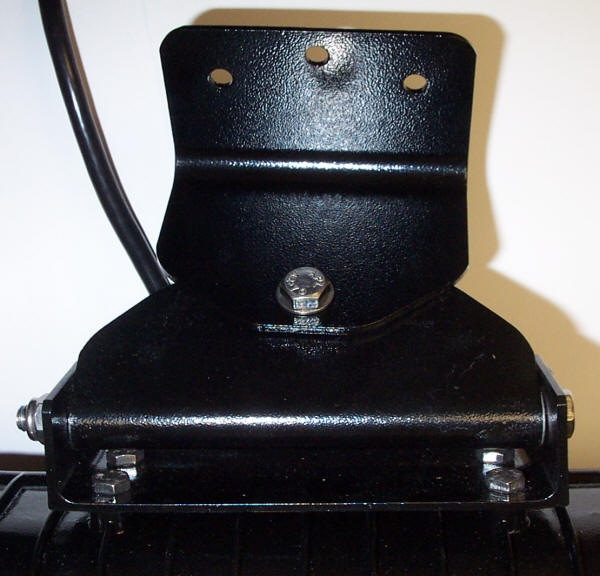

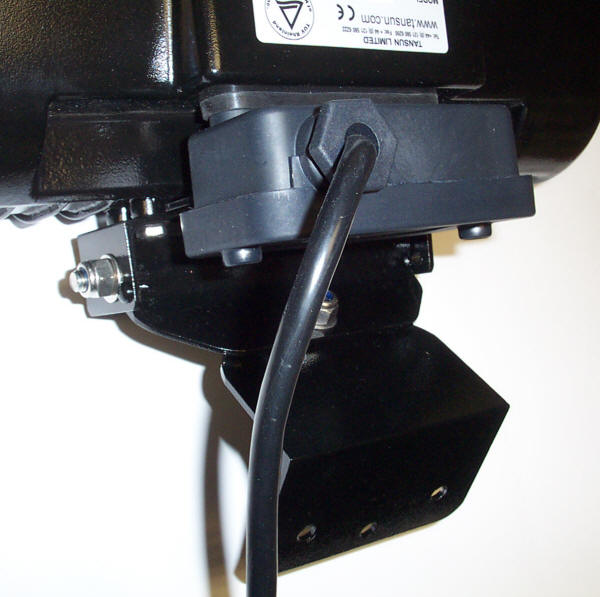

Sturdy mounting bracket is included
with the heater. A spare,
replacement or extra (to move the heater around to multiple locations quickly)
is available for purchase below.
In a 6' x 6' area we estimate that there is an apparent temperature rise of 15 Degrees F. If you are located anywhere outside of that area it will result in you feeling a smaller apparent temperature rise. For areas larger than 6' x 6' you should consider purchasing more than one heater to effectively cover the area. For areas larger than 6' x 6' we strongly suggest using multiple heaters strategically placed to allow even infrared heat distribution. If you have any questions regarding the number of heaters and placement please do not hesitate to contact our sales department for technical assistance.

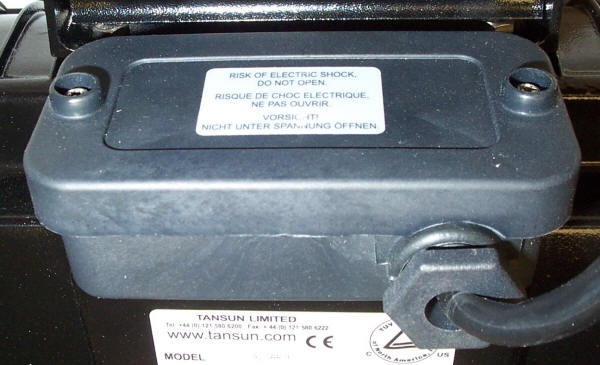

Terminal box
|
Solaira Heaters add comfort to Celine Dion live
Maintenance
In the event of heater failure contact us in the first instance. For spare parts or advice, please contact us.
· PLEASE FOLLOW THE FOLLOWING MAINTENANCE PROCEDURES TO ATTAIN MAXIMUM PERFORMANCE AND EMITTER LIFE. FAILURE TO FOLLOW MAINTENANCE PROCEDURE WILL VOID WARRANTY
· Disconnect the power before commencing any maintenance procedure including cleaning.
· To ensure optimum heat effectiveness, it is recommended that after the heater has been used approximately 80-100hrs, the front glass is opened and both the front glass and the reflector are wiped with a lint-free cloth before resealing.
· If at any time, a white deposit is seen on the inside of the glass or on the reflector, either or both should be cleaned with a lint-free cloth. Heating element failure due to lack of fixture maintenance are not warrantable and are distinguishable from lack of maintenance by test procedure. Any Heating element being submitted for warranty must be returned for analysis prior to claim being processed.
· The heater is supplied with a toughened safety glass. In the unlikely event that this should become cracked, please contact us for an immediate replacement.
Important: Please follow the maintenance instructions above. This specifically includes the requirement that you remove white dust accumulation that “could” occur during the initial 80 - 100 hours of use. If this maintenance does not occur, the white dust will essentially “Powder coat” itself to the emitter and WILL reduce the life of the emitter (by as much as 60% based on operating conditions). This maintenance is generally only required once as the initial oxidation only occurs once.
The heat emitter is designed to last for 1000 hours with proper care and maintenance (Please note that your individual usage pattern and location will have some affect on the maintenance requirements and heating element life). Failure could occur within the first 80 - 100 hours should there be no maintenance completed (one or more times removal of dust.) Failure due to manufacturing process (Philips) will be evident within this time frame and are covered under warranty.
Warranty
Primary fixture, wiring and connections are warranted to be free of manufacturers defects for a period of 1 year from the date of purchase.
Heat Emitter (Philips HeLeN Bulb) when used for Consumer/Household Applications are warranted for a period of 365 days from the date of purchase. (12-month limited warranty on bulb.)
Heat Emitter (Philips HeLeN Bulb) when used for Non-Residential Applications are warranted for a period of 30 days from the date of purchase. (1-month limited warranty on bulb) (In a non-residential application where the heater could be used more frequently, the heat emitter may not last 12 months and should be treated as a consumable item not covered by warranty.)
*This warranty is not applicable to fixtures have been installed incorrectly, altered from original design or have been used for applications other then the intended purpose
**Please follow safety precautions in the instruction manual before opening and cleaning the Solaira Heater. Please ensure that you do not touch the heating element in any location other then near the ceramic ends.
Replaceable
Element
(The
emitter is included and can be replaced,
sold below.)
Replacement of the spring-loaded quartz lamp emitter is
quick (spring-loaded.) Available for purchase below in
120 Volt
(AL013) 1,200 Watt or 240 Volt
1,300 Watt
| Optional Controls: | |
 |
Solaira 120/240 Volt Control for Quartz Heaters. Variable Heat Controller is a weatherproof, digital, solid-state power control designed to adjust heat output from 10% to 100%. On/off switch, “SOFT START” brings the power up slowly to increase emitter life. Up/down controls with heater level shown on the LED front panel. Installation in both indoor or outdoor applications including wet environments. Controls Quartz lamps or tubes of 115- 120 VAC up to 1600 Watt, 208- 240 VAC up to 3200 Watt. |
 |
Fostoria FTC-30 30-Minute Manual Timer. Includes time switch, wall plate and knob control. 120/208/240 Volts, 28 Max. Amps. |
| Literature: | |
 |
All Season Heater Instruction Manual in .pdf format (You must have the free
Adobe Acrobat Reader plug-in.)
 |
 |
All
Season Heater Sell/Cut Sheet in .pdf format (You must have the free
Adobe Acrobat Reader plug-in.)
|
|
Secure
Online Ordering |
|||||
| Item ID |
Catalog # |
Description | Price | Click "Select" to view the actual quantities in stock of the item & accessories. Click "Add" to view stock and add 1 to your cart. | |
| 120 Volt: | |||||
| SOLAIRA10001 | SALG212BLK | 120 Volt All Season Black Quartz Patio Heater - 1,200 Watt | $179.99 |
|
 |
| SOLAIRA10002 | SALG212WHT |
120 Volt All Season White Quartz Patio Heater - 1,200 Watt |
$179.99 |
 |
|
| SOLAIRA10003 | SALG001 | Replacement Element - 120 Volt - 1,200 Watt | $82.00 |
|
|
| 240 Volt: | |||||
| SOLAIRA10023 | SALG213WHT | 240 Volt All Season White Quartz Patio Heater - 1,300 Watt | $199.00 |
|
|
| SOLAIRA10021 | SALG013 | Replacement Element - 240 Volt - 1,300 Watt | $106.67 |
|
|
| Optional Accessories: | |||||
| SOLAIRA10048 | SALGBRKT01BLK | Black Replacement or extra mounting bracket | $32.72 |
|
|
| SOLAIRA10049 | SALGBRKT01WHT | White Replacement or extra mounting bracket | $32.72 |
|
|
| SOLAIRA10005 | SALGLASS001 | Replacement Glass | $27.69 |
|
|
| Optional Controls: | |||||
| SOLAIRA10044 | SCTR120-240 |
120, 208 or 240 Volt Variable Controller for Quartz Heaters |
$183.33 |
|
|
| FOST445955 | FTC-30 |
Fostoria 208/240 Volt 30-Minute Manual Timer |
$85.20 |
|
|
|
