Click here for a larger image

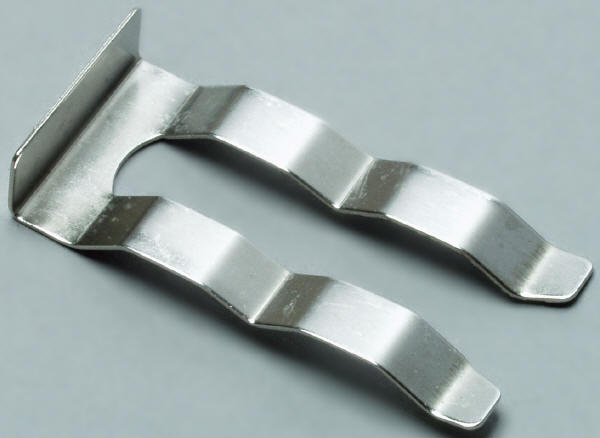

Our custom designed single piece clip allows for easy mounting and a reduction in the parts required for assembly.  Mount heaters in a 20 to 24 gauge [.036" (.9mm) to .025" (.6mm)] aluminized steel or stainless steel reflector.  The single piece "clip(s)" secures the heater to the reflector as shown in the drawing below.  The original two piece clip is still available upon request, and must be used for reflectors thicker than 20 Gauge [.036" (.9mm)]

Click here for a larger image

This drawing shows the ceramic heaters back side mounting post being inserted through a pre-cut hole in a reflector.  For best results the reflector should be highly reflective (polished aluminized steel) and capable of withstanding high temperatures.

Click here for a larger image
The above picture shows a ceramic heater with our replaceable thermocouple attached.  The mounting post has a channel near the top where the mounting clip will secure the ceramic heater to the reflector.

LTE mounting

Click here for a larger image
The larger LTE element has two mounting posts.

Two Piece Mounting Clip

Click here for a larger image

The two piece clip must be used for reflectors thicker than 20 Gauge [.036" (.9mm)]

ESE Mounting

The Salamander ESE (Solid Edison Screw Cap Heater) must be installed into an appropriately sized porcelain Edison base, reflector, and guard. (Part #: R/H/G).

Warnings
Electrical connections should be made directly through a high temperature ceramic terminal block (sold separately). Nickel plated copper wire, with insulation suitable for the load amperage and operating temperatures, must be used to make the power connection to the terminal blocks.  All electrical wiring must be done in accordance with local electrical codes by a qualified service technician.

For best results, the surface temperature of the Salamander ceramic infrared heater should be controlled using an open-loop (percentage timer) or a closed-loop (thermocouple feedback with digital temperature control) system. The infrared emission intensity is directly related to the surface temperature of the ceramic body (see the Salamander technical manual for more details).

Hazard of fire: Do not mount ceramic heaters near combustible materials or within a hazardous area. Ceramic heaters should never be used in an explosive atmosphere.

Electrical Shock: Disconnect electrical power before servicing heaters. All electrical wiring must be done in accordance to local electrical codes by a qualified service technician.

Do not operate the Salamander ceramic heaters at a surface temperature greater than 1292°F (700°C).

Do not operate the Salamander ceramic heaters at voltages in excess of their rated voltage.

Do not touch the ceramic heaters after power is applied to the heaters.

Never immerse ceramic heaters in liquids.

Severe Burns: Ceramic heaters operate at high temperatures. Do not touch heaters after power is applied to the heaters.

See page 5 of our Technical Manual and our detailed installation instructions for more information about panels and mounting ceramic heaters.
