Qmark Radiant Cove Panel Heaters
We are an authorized distributor for Qmark®. |
|
Type RCC Series Cove Heaters can fulfill the requirements of virtually any type residential or commercial heating situation. Individual room control, ease of installation and out of the way mounting make it equally desirable for total or supplemental comfort heating. Typical uses are day care centers, apartments, bathrooms, bedrooms, living rooms, kitchens, and foyers.
COLOR COORDINATED: Heaters are an off-white color to complement any interior wall design. (Dove Grey DG and Desert Tan DT are optional) (Optional colors at no extra charge, please send an e-mail after placing an order to specify other colors.)
DUAL FUNCTION HEATING: In addition to radiant heat, the RCC Series uses part of its energy to heat air passing behind and over the heater by convection flow, thus helping to “mix” the air in the room and achieving balanced heating throughout.
COMFORT AT LOWER TEMPERATURES – In non-radiant types of heating systems, it is necessary to warm and circulate air in order to keep the temperature in a room at a comfortable level. The warmer air warms the furniture and people in the room. With radiant heating, furniture and people are heated directly. The surrounding air eventually becomes warm, but the comfort level is not dependent upon the air temperature. Room temperature can be lowered 3 to 5 degrees while still maintaining the same comfort level. Furniture, walls, floors, etc., absorb some of the energy and act as a heat bank, releasing some of the warmth into the room during the “off” period of the normal “on-off” cycle of the cove heaters.
NEW EXTRUSION DESIGN: The extruded aluminum front panel is coated with high temperature textured paint radiating a majority of its heat energy from the front surface. The remaining energy is “wiped off” by a convection flow behind and over the top of the heater which circulates warm air into the room.
WALL MOUNTING – This cove heater mounts on
any wall surface, near the ceiling where its dual function heating can be
fully utilized. Radiant
heat energy is directed downward, warming people and objects near the floor.
"INFRARED" TYPE HEAT - Radiant heat provides heating comfort in much the same manner as the sun. Heat energy, in a form similar to light rays, travels in a straight line from the heater to the nearest object, where the energy is absorbed and the object becomes warm. Some rays are reflected and strike other objects, warming them also. As objects become warm, the surrounding air picks up heat by conduction and the entire room becomes warm, much like the sun warms the earth.
INDIVIDUAL ROOM CONTROL - The finite control available with electric heat permits individual room or zone control for greater economy; why heat the entire house when you are using only one or two rooms? This applies equally well for whole house heating or supplemental heating.
HIGH EFFICIENCY RADIATING SURFACE - The extruded aluminum front panel is coated with a lifetime vitreous enamel which has one of the highest levels for radiating heat energy of any known substance, radiating a majority of its heat energy from the front surface. The remaining energy is "wiped off" the element and back frame by a convection flow behind and over the top of the heater which circulates warm air into the room, under furniture, etc.
CONVENIENT WALL MOUNTING - NEAR CEILING - The RCC cove heater mounts on any wall surface, near the ceiling where its dual function heating can be fully utilized. Radiant heat energy is directed downward, warming people and objects near the floor, as well as the floor itself. Room air gains heat from these objects and rises toward the ceiling. The back side of the cove heater acts as a convector heater, pulling the cooler air from the floor area, behind and over the heater, thus helping to circulate and mix the air in the room until it reaches an equilibrium temperature. The out-of-the-way mounting also permits complete freedom of furniture placement in a room, because the heaters will not be subjected to blockage, which reduces the efficiency of floor or low-wall-mounted heaters.
|
Selecting Heaters:
Use the calculator below for selecting the quantity and wattage of heaters you will need in a given area, when using the heaters as a primary heat source (no other heaters present.) Supplementing existing heaters such as a forced air furnace system requires less wattage. A general rule of thumb for primary heating is to use 10 Watts / Square Foot of heat. Example: a 10'x10' room is 100 square feet: (100 x 10 W/Ft2 = 1000 Watts.)
Keep in mind that this is for an insulated building or room insulated to "electric heating" standards and is an estimation based on average conditions.
Installation
Instructions in .pdf format |
You must have the free Adobe Acrobat Reader plug-in. |
Secure Online Ordering Delivery time for the following products: Typically shipped in 1 working day or less. The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart. |
|||||
Item ID | Catalog # |
Length (In.) | Amps | Watts |
Click "Select" below to see price and actual real-time quantity in stock |
120 Volt Heaters: | |||||
QMARK685360147185 | RCC4512C |
34 | 3.7 | 450 | |
QMARK685360147215 | RCC6012C | 47 | 5.0 | 600 | |
QMARK685360147253 | RCC7512C | 59 | 6.2 | 750 | |
QMARK685360147291 | RCC9012C | 71 | 7.5 | 900 | |
QMARK685360147338 | RCC10512C | 83 | 8.8 | 1050 | Ships via Truck |
QMARK685360147369 | RCC12012C | 94 | 10.0 | 1200 | Ships via Truck |
240 Volt Heaters: | |||||
QMARK685360147192 | RCC4524C | 34 | 1.9 | 450 | |
QMARK685360147222 | RCC6024C | 47 | 2.5 | 600 | |
QMARK685360147260 | RCC7524C | 59 | 3.1 | 750 | |
QMARK685360147307 | RCC9024C |
71 | 3.7 | 900 | |
QMARK685360147451 | RCC10524C |
83 | 4.4 | 1050 | Ships via Truck |
QMARK685360147376 | RCC12024C |
94 | 5.0 | 1200 | Ships via Truck |
QMARK685360147406 | RCC15024C |
118 1/4 | 6.2 | 1500 | Ships via Truck |
QMARK685360147437 | RCC18024C | 132 | 7.5 | 1800 | Ships via Truck |
Delivery time for the 208 and 277 Volt Cove Heaters: Typically shipped in 17-24 working days or less. The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart. |
|||||
208 Volt Heaters: | |||||
QMARK685360147178 | RCC4508C | 34 | 2.2 | 450 | |
QMARK685360147208 | RCC6008C | 47 | 2.9 | 600 | |
QMARK685360147246 | RCC7508C | 59 | 3.6 | 750 | |
QMARK685360147284 | RCC9008C | 71 | 4.3 | 900 | |
QMARK685360147321 | RCC10508C | 83 | 5.0 | 1050 |
Ships via Truck |
QMARK685360147352 | RCC12008C | 94 | 5.8 | 1200 |
Ships via Truck |
QMARK685360147390 | RCC15008C | 118 1/4 | 7.2 | 1500 |
Ships via Truck |
QMARK685360147420 | RCC18008C | 132 | 8.7 | 1800 |
Ships via Truck |
277 Volt Heaters: | |||||
QMARK685360147239 | RCC6027C | 47 | 2.2 | 600 | |
QMARK685360147277 | RCC7527C | 59 | 2.7 | 750 | |
QMARK685360147314 | RCC9027C | 71 | 3.2 | 900 | |
QMARK685360147345 | RCC10527C | 83 | 3.8 | 1050 |
Ships via Truck |
QMARK685360147383 | RCC12027C | 94 | 4.3 | 1200 |
Ships via Truck |
QMARK685360147413 | RCC15027C | 118 1/4 | 5.4 | 1500 |
Ships via Truck |
QMARK685360147444 | RCC18027C | 132 | 6.5 | 1800 |
Ships via Truck |
Thermostats and Accessories: (Optional) | |||||
QMARK685360065663 | RCCT | Optional Integral Thermostat, 45°F to 90°F, with positive off | |||

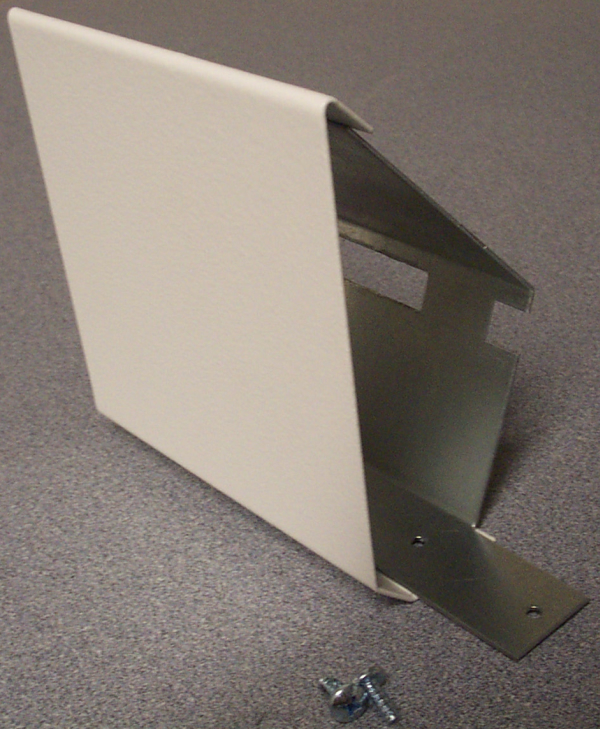

QMARK685360147666 | RCCSPC | Optional Splice Plate Assembly | |||
Wall Mount Thermostats: (Optional) | |||||
AUBE10010 | TH115-A-240D | Aube Tech. Double Pole, 240V Programmable Line Voltage Thermostat. 3600W @ 240V 15 Amp resistive 60 Hz 4 wires / DPST. 7-day programming, pre-programmed, backlight. 4 wires / DPST | |||
AUBE10003 | TH106 | Aube Tech. 120/240V, S.P.S.T., Programmable Line Voltage Thermostat | |||
WR10037 | 1A65W-641 | White WR-65W SPST Thermostat, 40°F to 85°F, 22 amp 120/240V, 18 amp 277V, Single Pole, wall mount | |||
WR10038 | 1A66W-641 | White WR-66W DPST Thermostat, 40°F to 85°F, 22 amp 240V, 18 amp 277V, Double Pole (D.P.S.T., Includes off position), wall mount | |||
WR10001 | 1A65-641 | Beige WR-65 SPST Thermostat, 40°F to 85°F, 22 amp 120/240V, 18 amp 277V, Single Pole, wall mount | |||
WR10002 | 1A66-641 | Beige WR-66 DPST Thermostat, 40°F to 85°F, 22 amp 240V, 18 amp 277V, Double Pole (D.P.S.T., Includes off position), wall mount | |||
AUBE10041 | TH104-Plus | SPST Digital Line Voltage Thermostat, 240V with Backlight LCD. | |||
AUBE10005 | TH104 | SPST Digital Line Voltage Thermostat, 120/240V | |||
AUBE10022 | TH115-A-120S | 2000 W @ 120 V, 16.7 A - 7-day programming, pre-programmed, backlight. 4 wires / SPST | |||
WR10009 | 24A06G-1 | White Rodgers Dual Level-Temp Low Voltage Control Systems | |||
AUBE10036 | TH115-A-024T | 0.5 A @ 24 V - R, C, W. 7-day programming, pre-programmed, backlight, low voltage | |||
FOST10001 | VHC-15 | Fostoria VHC-15 208/240Volt Solid State Variable Voltage Device. 15 Amps | |||
QMARK98319841025 | TC1 | Qmark Clear Plastic Universal Lockable Thermostat Guard. Dimensions: 7"L x 4.28"H x 2.74"D |
Qmark® is a registered trademark of Marley Engineered Products.
