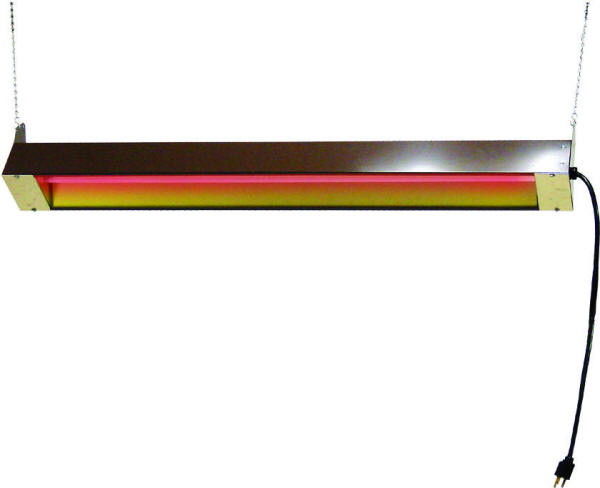

Fostoria CH Trimline Series Quartz Tube Comfort Heaters for Indoor or Protected Outdoor Areas

Click here for a larger image

Fostoria Infrared Heaters
We are an authorized distributor for Fostoria Industries, a manufacturer of infrared heating systems.

Link to other types of heaters:
Fostoria OCH TrimLine Outdoor/Indoor Comfort Heating Assemblies

Infrared heating is ideal for overhead "Spot" or "Zone" heating applications. Fostoria quartz infrared heaters have nearly instantaneous heat-up and can provide heat for specific areas within a large, open facility where a forced air heater would require more time and energy to heat.

Applications:

Industrial work stations
Factories
Warehouse loading docks
Counter service areas
Garages & basements
Waiting or smoking areas
Farm buildings
Greenhouses
Maintenance areas
Covered outdoor patios
Indoors or protected outdoor areas only

Features:

Brown - Powder Coated Housing
Gold Anodized Reflectors
Even heat distribution. Controlled 60 symmetrical reflector pattern
Compact design
Heavy-gauge safety screen (Optional)
UL/C-UL Listed
A quartz tube element is packed with each heater.
Includes a 6 foot plug & cordset
Single Phase

A 6, 3 wire molded plug and cordset is standard

MOUNTING: 46" models heat an approximate 10' x 12' area at an 8 ft mounting height. (Recommended mounting height 7 to 9 feet) 57" models heat an approximate 12' x 14' area at a 10 ft mounting height. (Recommended mounting height 8 to 10 feet) Heaters must be a minimum of 24" from combustibles, 3" from the ceiling and 36" apart. Requires a 12" minimum from a vertical surface. "WARNING: Do not use any product without first reading the safety and installation instructions packed with each product."

They can be suspended by chains or mounted with optional Fostoria brackets. Two 2' mounting chains and 4 S-hooks included for chain mounting or unit can be surface mounted using optional brackets (CH-MB) which allow up to a 45 degree horizontal tilt adjustment

Heat Distribution and Reflector Patterns

Optional Mounting Brackets:

CH-MB
Two Optional Wall Mounting Brackets for surface mounting of CH-46C and CH-57C. Allows up to a 45 degree horizontal tilt adjustment.

VMB-41-SS

One inch angle iron vertical mounting bracket used for mounting fixtures at least 36" from a vertical surface to the center of the heater. Can be used with swivel bracket. Two brackets included.

Optional Wire Guard

Optional use for protection. Constructed of heavy gauge chrome plated steel wire. 6" x 1 1/2" mesh size.

Optional Controls:

	Payne Controls Company 18TP-1-15 Variable Voltage Control. 120 Volt, Portable solid state power control, single-phase, 50/60 Hz input, 15 amp fuse, 6 foot plug & cordset. Can be used with the CH-46C. Click here for more information
	240 Volt, Payne Controls Company 18TP-2-15 Variable Voltage Control. , Portable solid state power control. single-phase, 15 amp fuse, 6 foot plug & cordset. 3600 watts @ 240 volts (maximum rated voltage). Can be used with the CH-57C. Click here for more information

Secure Online Ordering Delivery time for the following products: Typically in stock and processed/shipped in 1 working day or less. The transit time to you depends on your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.
Item ID	Catalog #	Description					Click "Select" below to see price and our actual real-time quantity in stock
FOST486000	CH-46C	46" x 5-3/8" x 3-3/16", 1,500 Watts, 5,120 BTU, 120 Volts
FOST486010	CH-57C	57" x 5-3/8" x 3-3/16", 3,000 Watts, 10,239 BTU, 240 Volts
Optional Mounting Brackets: (Can be added to your shopping basket after selecting a heater above)
FOST486335	CH-MB	Two Optional Wall Mounting Brackets for surface mounting of CH-46C and CH-57C.
FOST881128	VMB-41-SS	Vertical mounting bracket used for mounting at least 36" from a vertical surface. Two brackets included.
Optional Controls:
PAYNE10005	18TP-2-15	Payne Controls Company 240 VAC Variable Voltage Control.
PAYNE10003	18TP-1-15	Payne Controls Company Portable 120 VAC.
Optional Wire Guard
FOST804684	CHWG-46	Used on Model #: CH-46C
FOST804691	CHWG-57	Used on Model #: CH-57C
Replacement Elements: Tubes have No. 10-32 x 1/2" Stud on each end and an Outside Diameter of 5/8"
		Watts	Volts	Overall Length	Heated Length	Fits Model(s)
FOST443234	671-3784	1500	120	39-11/16"	34-3/16"	CH-46C
FOST441476	671-3786	3000	240	50-11/16"	45-3/16"	CH-57C

Other Fostoria products are also available. © Copyright Fostoria Industries Inc., (a wholly owned subsidiary of TPI Corporation)
