Solaira 120, 208 or 240 Volt Variable Controller for Quartz Lamp or Tube Heaters. Enclosed box (J box).

Click here for a larger image

We are an authorized distributor for Solaira (Inforesight Consumer Products Inc.)

Links to other Solaira products:

	Cosy All Weather Quartz Heater.  120 or 240 Volts for outdoor or indoor area’s.  Rain and snow proof.  120 Volt models have 15' cordset with household plug.
	Commercial All Weather High Output Outdoor Quartz Heater.  120 or 240 Volts.  Weatherproof - Water and snow resistant construction.  120 Volt includes a 6 foot cord, no plug included.
	Cosy Heat Quartz Heater.  For indoor/protected outdoor covered area’s.  240 Volt, 1,500 or 2,000 Watt with no cord and no plug and with a terminal box ready to be direct/hard wired.
	Alpha High Output Commercial/Industrial Heater for outdoor or indoor area’s (1500, 2000, 3000, 4000, 4500 and 6000 Watt), can be installed in tandem for up to 18,000 watts. Rain and snow proof. Safety glass. 120 Volt: Power Cord Length: 15 feet, plug included (direct wired heater) Terminal box is included. 240 Volt: Power cord, Length: 6 feet. plug NOT included (direct wired heater) Terminal box is included
	Commercial High Output (HOS) 1,500 Watt Indoor/Protected Outdoor Quartz Heater.  120 or 240 Volts. 120 Volt models have 6’ of cable (no plug). Not for use in exposed outdoor areas.

Optional Control for the 120 or 240 Volt Models:

The Solaira Variable Heat Controller is a weatherproof, digital, solid-state power control designed to provide a convenient way to adjust heat output on electric infrared heating elements. It allows for adjusting heat output of the appliance from 10 to 100% of the available power. The control is simple and intuitive with the on/off switch that will turn the heater on to the last power setting when it was turned off and the “SOFT START” feature will bring the power up slowly to the emitter adding an estimated 15% to the emitter life. The up/down controls are simple to use and the heater level is shown on the LED front panel.

WEATHER PROOF
The Solaira Variable Heat Controller is engineered for  installation in both indoor or outdoor applications including wet environments. The controller can be used to control heaters on outdoor applications including patios, outdoor structures and  pergolas as well as all indoor applications.

POWER SOURCE
The controller is designed to control the following heating configurations:

• 115- 120 VAC up to 1600 Watt, Quartz Emitter (lamp) or Tubes

• 208- 240 VAC up to 3200 Watt, Quartz Emitter (lamp) or Tubes

 DETAILS

• On/Off switch

• Controllable heat settings from 10 to 100%.

• Wall or post mounted, electrical wall box mount included

• Accommodates standard 1/2” conduit hardware

• 1/2" knockouts (fittings not included)

• Controller will operate

• One (1) quartz lamp or tube totaling up to 1600W at 115 to 120VAC

• One (1) or two (2) quartz lamps or tubes totaling up to 3200W at 208 to 240VAC

Click here for a larger image

Click here for a larger image

Click here for a larger image

Click here for a larger image

Click here for a larger image

Click here for a larger image

Caution: All quartz lamps have a high en-rush that can be as high as 15 times the steady state current. For this reason, the maximum number of appliances is two (2) of up to1600W each at 208/240V and one (1) of up 1600W at 115 to 120VAC. Any higher wattages could damage the control.

Warning: ELECTRICAL SHOCK HAZARD, all wiring must be performed by a licensed electrician.

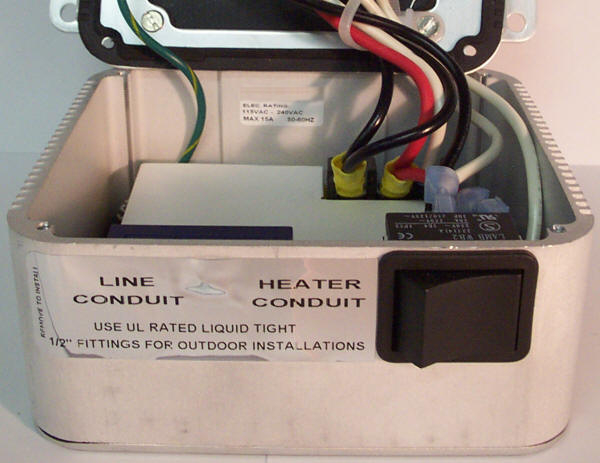

Knockouts only (fittings not included)

Specifications/Instruction Manual

.pdf format (You must have the free Adobe Acrobat Reader plug-in.)
