Solaira HOS Series Commercial High Output 1,500 or 3,000 Watt Indoor/Protected Outdoor Quartz Infrared Heater



We are an authorized distributor for Solaira (Inforesight Consumer Products Inc.)

Links to other Solaira Products:

Cosy All Weather Quartz Heater.  120 or 240 Volts for outdoor or indoor area’s.  Rain and snow proof120 Volt models have 15' cordset with household plug.
All Season All Weather Quartz Outdoor Patio Heater.  120 Volt 1,200 Watt models have 16' cordset with household plug.  240 Volt, 1,300 Watt with no cord/no plug.  Weatherproof - Water, snow and dust resistant.
Commercial All Weather High Output Outdoor Quartz Heater.  120 or 240 Volts.  Weatherproof - Water and snow resistant construction.  120 Volt includes a 6 foot cord, no plug included.
Commercial Quartz Heater. 120 or 240 Volts.  120 Volt models have 16' cordset with household plug. 1,500 or 2,000 Watts. Metal safety guard.
Cosy Heat Quartz Heater.  120 or 240 Volts for indoor/protected outdoor covered area’s. 120 Volt models have 15' cordset with household plug.
120/240 Variable Volt Control for Quartz Heaters.  Indoor/outdoor weatherproof, digital, solid-state power control adjusts heat output from 10% to 100%. The on/off switch with “SOFT START” feature will bring the power up slowly to the emitter. Up/down controls, heater level on the LED front panel. 115-120 VAC up to 1600 Watt, 208-240 VAC up to 3200 Watt.

bullet

High Output Series (HOS) heaters are designed for a wide variety of commercial, industrial and hospitality applications:

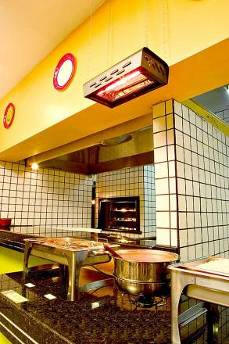

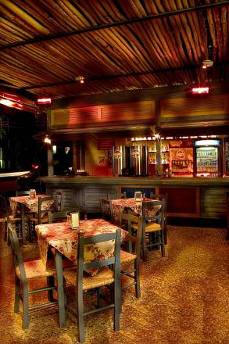

covered patio’s, under awning, windy/cold reception area’s

bullet

Not for use in exposed outdoor areas (i.e. where there is rain or wind driven rain)

bullet

commercial heating:

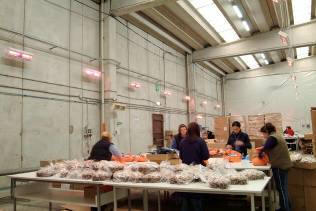

Zone Heating in retail, Warehouse, assembly line area

bullet

Industrial heating:

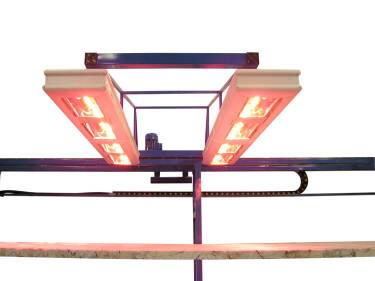

Process heating

bullet

Long life emitter (5000 hour)

bullet

Available in single, double and triple emitter options

bullet

Professional Grade

bullet

Scratch resistant BLACK powder coat finish

bullet120 Volt: Power Cord Length: 6 feet. No plug included (direct wired heater)
bullet 240 Volt: No power cord. Terminal box is included - ready to be direct/hard wired.)
bullet

Universal bracket for vertical & horizontal adjustment

bullet

CERTIFICATION: cETLus (UL2021) or cTUVus approved for covered areas, CE.

bullet

Heat People, objects and things…when you want…. economically!

bullet

Mounting height/ Clearance above: 8’2”/1'

bullet

Black Color

bullet

Available in 1500 W (single), 3000W (double) and 4500W (triple) emitter options up to 12,000 W for industrial applications

bullet

High Output Series (HOS) heaters are designed for a wide variety of commercial, industrial and hospitality applications:

bullet

covered patio’s, under awning, windy/cold reception area’s
commercial heating:
Zone Heating in retail, Warehouse, assembly line area,
Industrial heating:
Process heating

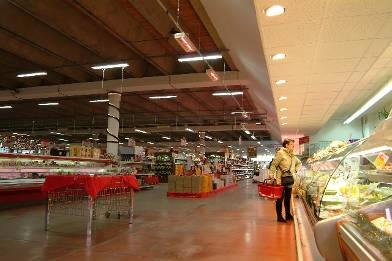

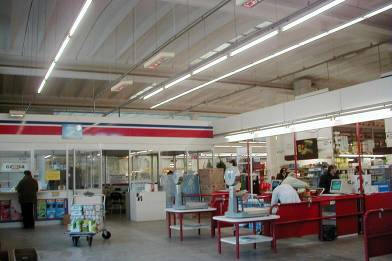

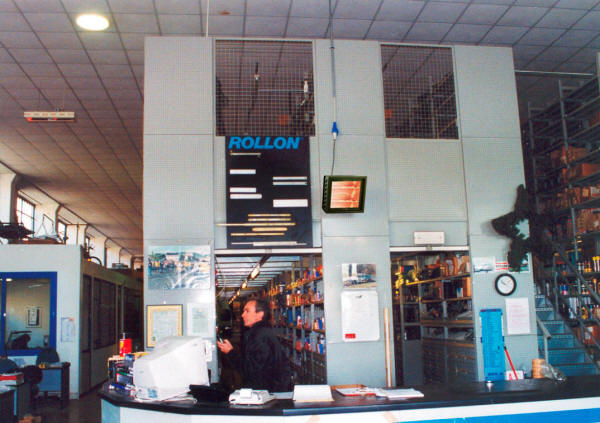

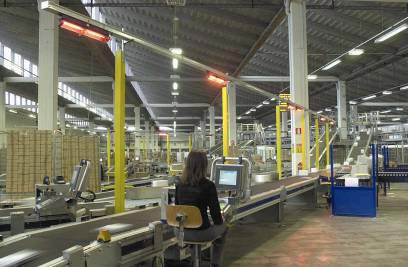

The Innovative Solaira H.O.S. series quartz heaters are highly efficient and economical appliances for commercial, industrial and consumer situations requiring spot or area heating. They are environmentally friendly, odorless, safe and virtually maintenance free. These unique heaters only heat people and objects within the heat zone, not the air between. Consider how much you will save by reducing your area heating requirements by adding ultra efficient Solaira heaters where your staff are working or lining up. Ideal for factories, warehouses, farm buildings, shipping areas, breezy desk or common areas and commercial areas such as grocery stores and check out areas.

bulletHIGH PERFORMANCE
bulletCOMMERCIAL/INDUSTRIAL GRADE

RELIABLE, EFFICIENT AND EFFECTIVE

bulletWarm ambient glow
bulletPowerful 1.5 and 3.0 kW (1,500 watt or 3,000 watt) options heat up to 250 ft2
bulletSafe
bulletInstant and directional



CONVENIENT AND VERSATILE

bulletAdjustable steel wall mounting bracket
bulletVirtually maintenance free

WHY CHOOSE SOLAIRA™ QUARTZ HEATING OVER NATURAL GAS OR PROPANE HEATERS?

bulletLow operating cost of approximately 18-36’/hr (based on electricity cost of 12’/kW hour)
bulletProduces instant heat with no initial warm up time
bulletWall mounting maximizes floor space with no storage of bulky propane gas bottles
bulletProvides reliable heat source that won't blow away or fail to start
bulletSilent and odorless operation with no products of combustion


Model Total  Total  Supply current Amps Dimensions Weight mounting height/ Clearance above
Elements kW
SCHO15120B  1 1.5 120V, 12.5 A 15-3/4” x -8-1/2” x 6”  10 lb 8’2”/1”
SCHOH230120B  2 (side by side) 3 120V, 25 A 32” x -8-1/2” x 6”  20 lbs 8’2”/1”
 SCHOV230120B  2 (vertical) 3 120V, 25 A 15-3/4” x 13-1/2” x 6”  20 lb 8’2”/1’
SCHO20240B 1 1.5 240V, 6.25 A 15-3/4” x -8-1/2” x 6”  10 lb 8’2”/1”
SCHOH230240B 2 (side by side) 3 240V, 12.5 A 32” x -8-1/2” x 6”  20 lbs 8’2”/1”
SCHOV230240B  2 (vertical) 3 240V, 12.5 A 15-3/4” x 13-1/2” x 6”  20 lb 8’2”/1’
SCHOH345240B 3 (side by side) 4.5 240V, 18.75 A 48” x -8-1/2” x 6”  30 lb 8’2”/1’
SCHOV345240B 3 (vertical) 4.5 240V, 18.75 A 15-3/4” x 18-1/2” x 6”  30 lb 10 – 12’/1’
SCHO60480B 6 (3 rows of 2 s by s) 6 480, 2 or 3 phase 40” X 40” X 6” 60 lb 15’ and up
SCHO90480B 6 (3 rows of 2 s by s) 9 480, 2 or 3 phase 40” X 40” X 6” 60 lb 15’ and up
SCHO12480B 6 (3 rows of 2 s by s) 12 480, 2 or 3 phase 40” X 40” X 6” 60 lb 15’ and up
Optional Controls:
Solaira 120/240 Volt Control for Quartz Heaters Variable Heat Controller is a weatherproof, digital, solid-state power control designed to adjust heat output from 10% to 100%. On/off switch, “SOFT START” brings the power up slowly to increase emitter life. Up/down controls with heater level shown on the LED front panel. Installation in both indoor or outdoor applications including wet environments. Controls Quartz lamps or tubes of 115- 120 VAC up to 1600 Watt, 208- 240 VAC up to 3200 Watt.
Fostoria VHC-32 Variable 208/240 Volt Controller. Solid-state power control designed to provide a convenient way to adjust heat output on electric infrared heating elements. Control heaters on patios, in shelter houses or other protected outdoor environments. It can operate up to a maximum of 3200 watts.
Fostoria FTC-30 30-Minute Manual Timer. Includes time switch, wall plate and knob control. 208/240 Volts, 28 Max. Amps.
Literature:
HOS Instruction Manual in .pdf format (You must have the free Adobe Acrobat Reader plug-in.)
HOS Sell/Cut Sheet in .pdf format (You must have the free Adobe Acrobat Reader plug-in.)

Secure Online Ordering
Delivery time for the following products: Typically shipped in 1 working day or less.  The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Item ID

Catalog #

Total Elements Heat Zone Dimensions Description Price Click "Select" to view the actual quantities in stock of the item & accessories. Click "Add" to view stock and add 1 to your cart.
120 Volt:
SOLAIRA10031 SCHO15120B 1 10' X 10΄ 15-3/4” x 8-1/2” x 6” 1.5kW, 120V, 12.5 Amp $315.38 Select
SOLAIRA10042 SPRES15120 Replacement Element - 120 Volt - 1,500 Watt $99.99 Select
240 Volt:
SOLAIRA10034 SCHO15240B 1 10' X 10΄ 15-3/4” x 8-1/2” x 6” 1.5kW, 240V, 6.25 Amp $353.85 Select
SOLAIRA10035 SCHOV230240B 2 (vertical) 10' X 18΄ 15-3/4” x 13-1/2” x 6” 3.0kW, 240V, 12.5 Amp $513.85 Select
SOLAIRA10036 SCHOH230240B 2 (horizontal) 16' X 16΄ 32” x 8-1/2” x 6” 3.0kW, 240V, 12.5 Amp $547.69 Select
SOLAIRA10043 SPRES15240 Replacement Element - 240 Volt - 1,500 Watt $123.07 Select
Optional Controls and Accessories:
SOLAIRA10044 SCTR120-240

120, 208 or 240 Volt Variable Controller for Quartz Heaters

$249.00 Select
FOST485357 VHC-32

Fostoria Variable 208/240 Volt Controller

$220.80 Select
FOST445955 FTC-30

Fostoria 208/240 Volt, 30-Minute Manual Timer

$85.20 Select
