Chromalox RADD Two Element Metal Sheathed Tubular Industrial Reflector Assemblies

Chromalox Electric Heaters and Controls
We are an authorized Chromalox® distributor.

• 3.66 kW/Ft2

• 1.6 - 13 kW

• 120, 208, 240, 275 and 480 Volt

• 3/8" Dia. INCOLOY® Sheath Elements (type RTU)

• 1500°F Max. Sheath Temp.

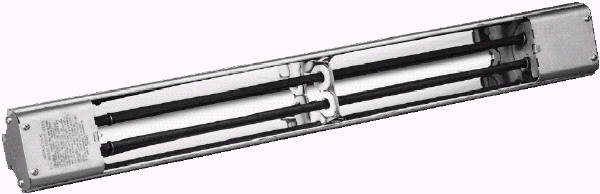

Double Element Radiant Heater

Applications

• Shrink Fitting

• Preheat Glass for Polishing, Drying, Sterilizing

• Fast-Moving Webs

Features

Complete, Ready-to-Connect Assembly available in various lengths to accommodate work of varying dimensions.

Movable Mounting Clamps and Bolts are supplied to accommodate many mounting configurations such as banks, tunnels and oven sections.

Process Temperature Control — Radiant heater output may be controlled with Chromalox SCR Controllers, Percentage Timing Input Controls and Non-Contact Temperature Sensors. See the Controls section of this catalog.

Additional Sizes and Ratings — Contact your Local Chromalox Sales office for price and availability.

Single Ended Wiring — Heaters may be furnished single-end wired with 18" leads as standard. Add the suffix SE to model number.

Replacement Elements Available

Construction

Enclosed Chromalox Alloy-Sheath Tubular Heating Element is completely isolated and supported on secondary insulation for improved electrical safety. Designed for long life, the element is more resistant to hard blows than quartz lamp or tube and open coil types.

Rigid Extruded Aluminum Housing protects heating element from harsh industrial environments.

Highly Polished Aluminum Reflectors give good reflectivity and heat transfer, and are easily cleaned to maintain energy efficiency.

Accessories

 Protective grills - Type GR snap-in sections help protect personnel or work from direct contact with hot elements.
 Ordering Information

Length Model # PCN #
8" GR-800 111860
16-1/16" GR-2 111878
22-5/16" GR-3 111886
38-5/16" GR-4 111894
53-1/16" GR-5 111907
65-7/16" GR-6 111915

Companion Reflector — Optional radiant companion reflectors improve oven efficiency. See Radiant Accessories in this section.

Pipe Plug - Use to close 1/2" tapped wiring entry holes. Specify Part No. 1-113863 (PCN 113970).

Jumper Strap — Use to series connect elements in RADD type heaters. Part No. 30-75230 (PCN 867963 or 113996).

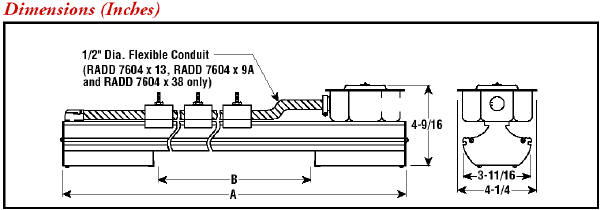

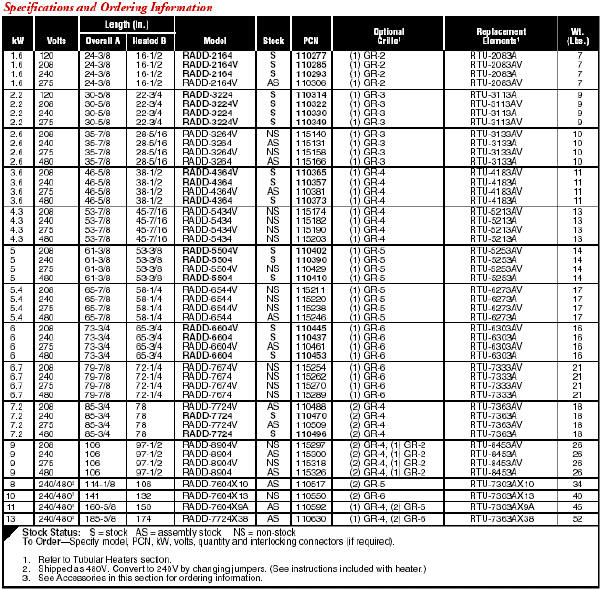

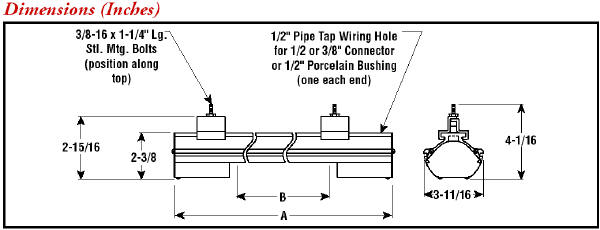

kW Volts Overall
 Length (")		 Heated
 Length (")		 Model # Optional
Grill
1.6 120 24-3/8 16-1/2 RADD-2164 (1) GR-2
1.6 208 24-3/8 16-1/2 RADD-2164V (1) GR-2
1.6 240 24-3/8 16-1/2 RADD-2164 (1) GR-2
1.6 275 24-3/8 16-1/2 RADD-2164V (1) GR-2
2.2 120 30-5/8 22-3/4 RADD-3224 (1) GR-3
2.2 208 30-5/8 22-3/4 RADD-3224V (1) GR-3
2.2 240 30-5/8 22-3/4 RADD-3224 (1) GR-3
2.2 275 30-5/8 22-3/4 RADD-3224V (1) GR-3
2.6 208 35-7/8 28-5/16 RADD-3264V (1) GR-3
2.6 240 35-7/8 28-5/16 RADD-3264 (1) GR-3
2.6 275 35-7/8 28-5/16 RADD-3264V (1) GR-3
2.6 480 35-7/8 28-5/16 RADD-3264 (1) GR-3
3.6 208 46-5/8 38-1/2 RADD-4364V (1) GR-4
3.6 240 46-5/8 38-1/2 RADD-4364 (1) GR-4
3.6 275 46-5/8 38-1/2 RADD-4364V (1) GR-4
3.6 480 46-5/8 38-1/2 RADD-4364 (1) GR-4
4.3 208 53-7/8 45-7/16 RADD-5434V (1) GR-4
4.3 240 53-7/8 45-7/16 RADD-5434 (1) GR-4
4.3 275 53-7/8 45-7/16 RADD-5434V (1) GR-4
4.3 480 53-7/8 45-7/16 RADD-5434 (1) GR-4
5 208 61-3/8 53-3/8 RADD-5504V (1) GR-5
5 240 61-3/8 53-3/8 RADD-5504 (1) GR-5
5 275 61-3/8 53-3/8 RADD-5504V (1) GR-5
5 480 61-3/8 53-3/8 RADD-5504 (1) GR-5
5.4 208 65-7/8 58-1/4 RADD-6544V (1) GR-5
5.4 240 65-7/8 58-1/4 RADD-6544 (1) GR-5
5.4 480 65-7/8 58-1/4 RADD-6544 (1) GR-5
6 208 73-3/4 65-3/4 RADD-6604V (1) GR-6
6 240 73-3/4 65-3/4 RADD-6604 (1) GR-6
6 275 73-3/4 65-3/4 RADD-6604V (1) GR-6
6 480 73-3/4 65-3/4 RADD-6604 (1) GR-6
6.7 208 79-7/8 72-1/4 RADD-7674V (1) GR-6
6.7 240 79-7/8 72-1/4 RADD-7674 (1) GR-6
6.7 275 79-7/8 72-1/4 RADD-7674V (1) GR-6
6.7 480 79-7/8 72-1/4 RADD-7674 (1) GR-6
7.2 208 85-3/4 78 RADD-7724V (2) GR-4
7.2 240 85-3/4 78 RADD-7724 (2) GR-4
7.2 275 85-3/4 78 RADD-7724V (2) GR-4
7.2 480 85-3/4 78 RADD-7724 (2) GR-4
9 208 106 97-1/2 RADD-8904V (2) GR-4, (1) GR-2
9 240 106 97-1/2 RADD-8904 (2) GR-4, (1) GR-2
9 480 106 97-1/2 RADD-8904 (2) GR-4, (1) GR-2
8 240/480 114-1/8 106 RADD-7604X10 (2) GR-5
10 240/480 141 132 RADD-7604X13 (2) GR-6
11 240/480 160-5/8 150 RADD-7604X9A (1) GR-4, (2) GR-5
13 240/480 185-5/8 174 RADD-7724X38 (1) GR-4, (2) GR-6

Secure online Credit Card ordering - SSL encryption.

Delivery times:
 For heaters with a stock status of ST (Stock): Typically in 5-7 workdays or less plus the time of your selected UPS shipping method.
For heaters with a stock status of AS (Assembly Stock): These products are non-returnable. Typically ships in 8-17 workdays or less plus the time of your selected UPS shipping method.
For heaters with a stock status of NS (Non Stock): These products are non-returnable. Typically ships in 25-27 workdays or less plus the time of your selected UPS shipping method.
Item Id Catalog No. Stock Status Price

Click "Select" below to see the actual quantity in stock
CHROM110277 RADD-2164 120V1P 1.600KW ST $394.00 Select
CHROM110285 RADD-2164V 208V1P 1.600KW ST $394.00 Select
CHROM110293 RADD-2164 240V1P 1.600KW ST $394.00 Select
CHROM110306 RADD-2164V 275V1P 1.600KW AS $394.00 Select
CHROM110314 RADD-3224 120V1P 2.200KW ST $438.00 Select
CHROM110322 RADD-3224V 208V1P 2.200KW NS $438.00 Select
CHROM110330 RADD-3224 240V1P 2.200KW ST $438.00 Select
CHROM110349 RADD-3224V 275V1P 2.200KW ST $438.00 Select
CHROM115140 RADD-3264V 208V1P 2.600KW NS $500.00 Select
CHROM115131 RADD-3264 240V1P 2.600KW AS $500.00 Select
CHROM115158 RADD-3264V 275V1P 2.600KW NS $500.00 Select
CHROM115166 RADD-3264 480V1P 2.600KW AS $500.00 Select
CHROM110365 RADD-4364V 208V1P 3.600KW ST $537.00 Select
CHROM110357 RADD-4364 240V1P 3.600KW ST $537.00 Select
CHROM110381 RADD-4364V 275V1P 3.600KW AS $521.00 Select
CHROM110373 RADD-4364 480V1P 3.600KW ST $537.00 Select
CHROM115174 RADD-5434V 208V1P 4.300KW NS $605.00 Select
CHROM115182 RADD-5434 240V1P 4.300KW NS $605.00 Select
CHROM115190 RADD-5434V 275V1P 4.300KW NS $605.00 Select
CHROM115203 RADD-5434 480V1P 4.300KW NS $605.00 Select
CHROM110402 RADD-5504V 208V1P 5.000KW ST $673.00 Select
CHROM110429 RADD-5504V 275V1P 5.000KW NS $673.00 Select
CHROM110390 RADD-5504 240V1P 5.000KW ST $673.00 Select
CHROM110410 RADD-5504 480V1P 5.000KW ST $673.00 Select
CHROM115211 RADD-6544V 208V1P 5.400KW NS $710.00 Select
CHROM115220 RADD-6544 240V1P 5.400KW NS $710.00 Select
CHROM115246 RADD-6544 480V1P 5.400KW AS $710.00 Select
CHROM110445 RADD-6604V 208V1P 6.000KW ST $754.00 Select
CHROM110437 RADD-6604 240V1P 6.000KW ST $754.00 Select
CHROM110453 RADD-6604 480V1P 6.000KW ST $754.00 Select
CHROM115254 RADD-7674V 208V1P 6.700KW NS $770.00 Select
CHROM115262 RADD-7674 240V1P 6.700KW NS $793.00 Select
CHROM115289 RADD-7674 480V1P 6.700KW NS $793.00 Select
CHROM110488 RADD-7724V 208V1P 7.200KW AS $836.00 Select
CHROM110470 RADD-7724 240V1P 7.200KW ST $836.00 Select
CHROM110509 RADD-7724V 275V1P 7.200KW AS $836.00 Select
CHROM110496 RADD-7724 480V1P 7.200KW ST $836.00 Select
CHROM115297 RADD-8904V 208V1P 9.000KW NS $962.00 Select
CHROM115300 RADD-8904 240V1P 9.000KW AS $962.00 Select
CHROM115326 RADD-8904 480V1P 9.000KW AS $962.00 Select
CHROM110517 RADD-7604X10 240/480V 8.000KW AS $1,067.00 Select
CHROM110550 RADD-7604X13 240/480V 10.000KW NS $1,984.00 Ships via truck
CHROM110592 RADD-7604X9A 240/480V 11.000KW AS $2,153.00 Ships via truck
CHROM110630 RADD-7724X38 240/480V 13.000KW AS $2,632.00

Ships via truck

Other Chromalox® products are available upon request. See our ordering page or fill out our contact form.
