Quartz Infrared Emitters

Links to other Quartz Heaters:
Quartz Tubes
Quartz Lamps

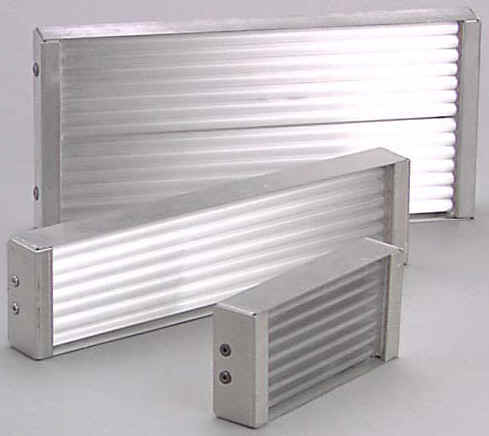

Pictured from top, LFQ, FFQ and HFQ.

bullet

Fast Response

bullet

Rapid heat-up

bullet

Rapid cool down

bullet

Ideal for fast cycling machines

bullet

Highly reflective aluminized internal surface

bullet

High radiant efficiency

bullet

Low convection losses

bullet

Five Standard Sizes

bullet

Large choice of power ratings available

bullet

Volts: Heater can be manufactured to suit most supply voltages.

Quartz emitters provide medium wavelength radiation and can be the most preferred source of heat when rapid heater response is needed. The heaters are comprised of a series of quartz tubes running parallel to each other within a highly reflective aluminized steel housing. Each tube contains a coiled resistance wire available in a variety of wattages and voltages. Watt densities up to 30 w/sq. inch (4.65 w/sq. cm) are available. The large variety of sizes, shapes, and watt densities allows quartz emitters to be highly useful in zoning arrangements such as plastic thermoforming sheet-fed applications where complex heating patterns are needed, high-speed roll-fed processes, and machines requiring precise zone control because they are small in size, and can easily be put in larger panels.  Some of these emitters are approximately the same size as our Salamander ceramic infrared heaters (FFQ style=FTE size ceramic heater, HFQ style=HTE size ceramic heater, HSQ style=HSE size ceramic heater.)

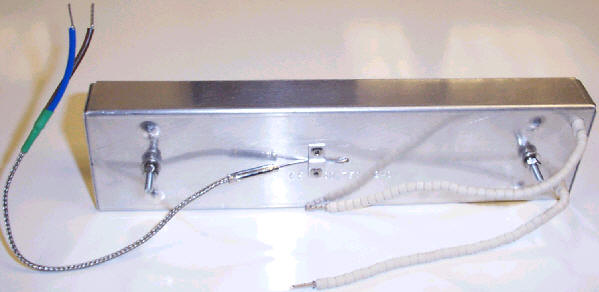

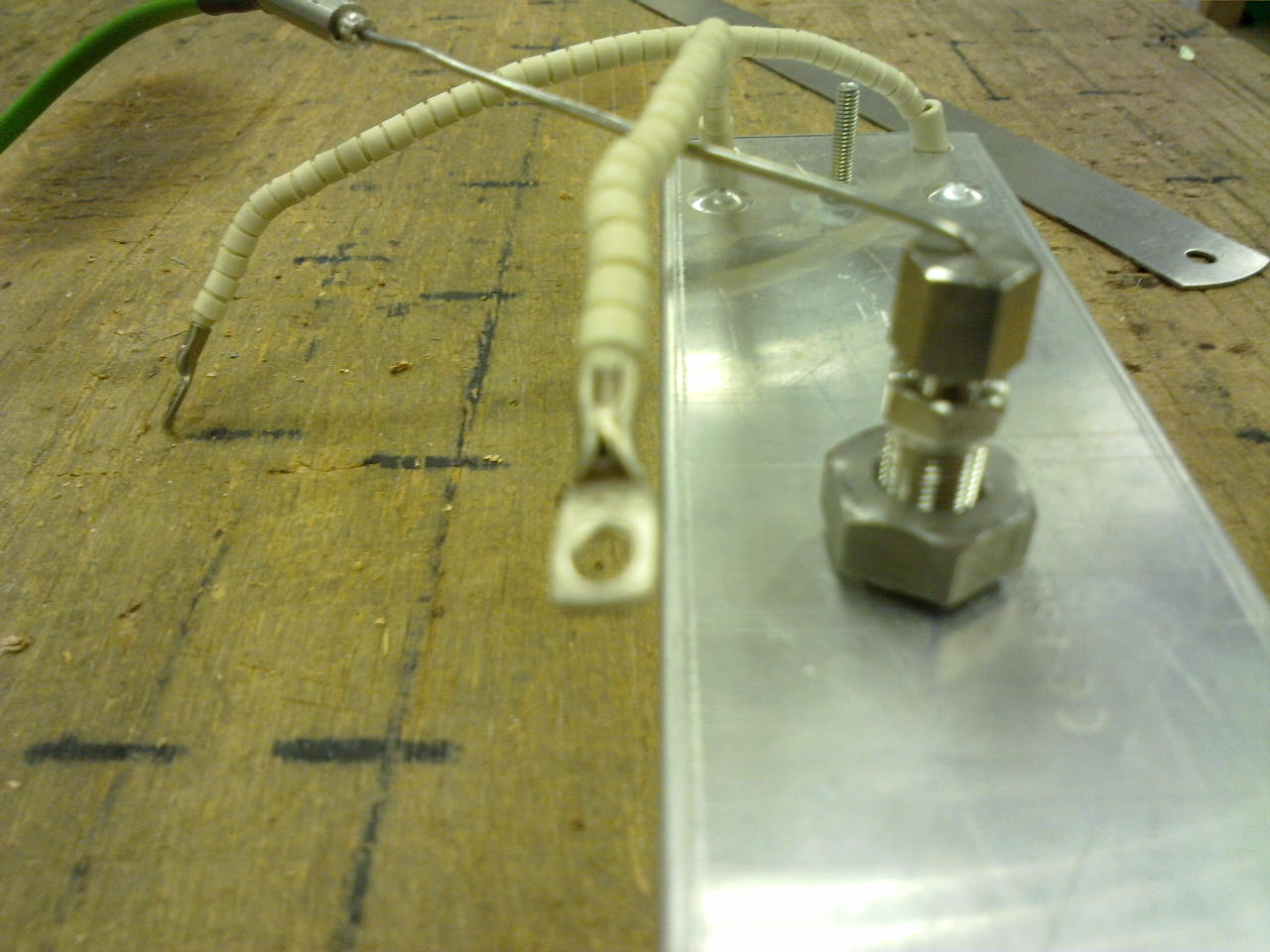

The back of an FFQ heater showing lead wires with ceramic beads, mounting screws and the optional thermocouple.

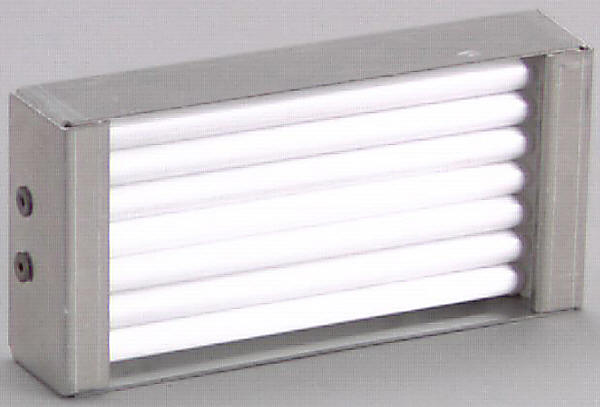

HFQ Style Quartz Emitter


Click here for a larger image


 Click here for a larger image

FFQ Style Quartz Emitter


 Click here for a larger image

HSQ Style Quartz Emitter


 Click here for a larger image

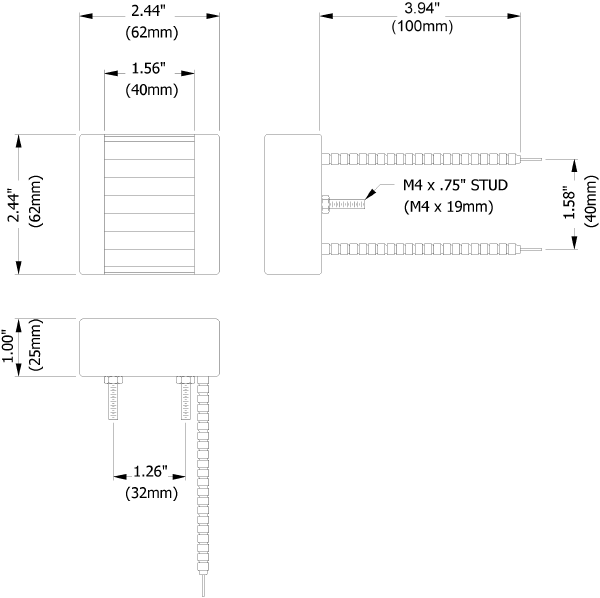

QFQ Style Quartz Emitter


Click here for a larger image

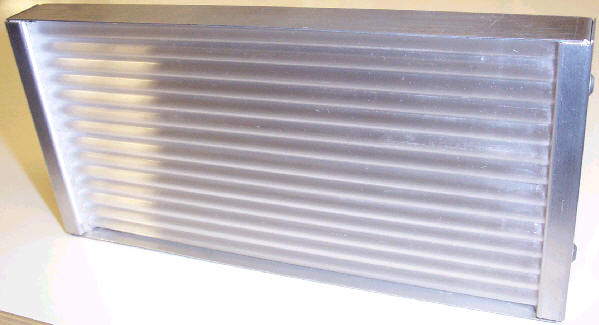

LFQ Style Quartz Emitter


Click here for a larger image

Optional Controls:

240 Volt, Payne Engineering 18TP-2-15 Variable Voltage Control, Portable solid state power control. single-phase,15 amp max.

240 VAC Input, Payne Engineering 18TBP-2-15 Variable Temperature Controller adjusts heat output from 0-100%. 0-235 VAC Output, 50/60Hz (Also for 220/230 VAC Input.)  Electrical Power Wire

Electrical Power Wire

Literature in .pdf format You must have the free Adobe Acrobat Reader plug-in.

Secure Online Ordering
Delivery time for the following products: Typically shipped in 1 working day or less.  The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Item ID

Catalog#

Description

Price

Click "Select" below to see the actual quantity in stock
IRHHTQ10010 FFQ-750-240-L6 240V 750W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10016 FFQ-1000-240-L6 240V 1000W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10052 HFQ-500-240-L6 240V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10068 QFQ-250-240-L6 240V 250W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10051 HSQ-750-240-L6  240V 750W Quartz Heater Quartz Infrared Heating Element with 6" leads $60.68 Select
IRHHTQ10055 HSQ-500-120-L6 120V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $60.68 Select
IRHHTQ10022 HSQ-1000-240-L6 240V 1000W Quartz Heater Quartz Infrared Heating Element with 6" leads $60.68 Select
IRHHTQ10012 LFQ-1250-240-L6 240V 1250W Quartz Heater Quartz Infrared Heating Element with 6" leads $76.77 Select
Delivery time for the following products: The following heaters have a 25 piece minimum order requirement and the delivery time is: typically ships in 3-4 weeks or less plus the time of your selected UPS shipping method. Your shipping cost will be displayed in your shopping cart.
FFQ Style Quartz Emitter
IRHHTQ10034 FFQ-300-240-L6 240V 300W Quartz Heater Quartz Infrared Heating Element with 6" Leads $47.51 Select
IRHHTQ10015 FFQ-400-200-L6 200V 400W Quartz Heater Quartz Infrared Heating Element with 6" Leads $47.51 Select
IRHHTQ10038 FFQ-400-277-L4 277V 400W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10054 FFQ-500-200-L6 200V 500W Quartz Heater Quartz Infrared Heating Element with 6" Leads $47.51 Select
IRHHTQ10050 FFQ-500-230-L4 230V 500W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10026 FFQ-500-230-L6 230V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10023 FFQ-500-240-L4 w/ Type K Thermocouple Quartz Infrared Heating Element with 4" Leads $119.31 Select
IRHHTQ10031 FFQ-500-240-L6 240V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10048 FFQ-600-220-L6 220V 600W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10020 FFQ-600-240-L4 240V 600W Quartz Emitter Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10001 FFQ-650-240-L4 240V 650W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10002 FFQ-650-480-L4 480V 650W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10013 FFQ-650-480-L4 480V 650W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10030 FFQ-650-480-L6 480V 650W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10011 FFQ-750-240-L6-KTC  240V 750W w/ Type K Thermocouple Quartz Infrared Heating Element with 6" leads $123.71 Select
IRHHTQ10033 FFQ-750-280-L6 280V 750W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10017 FFQ-1000-480-L4 480V 1000W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
HFQ Style Quartz Emitter
IRHHTQ10043 HFQ-150-120-L6 120V 150W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10019 HFQ-150-240-L6 240V 150W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10003 HFQ-200-200-L6 200V 200W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10044 HFQ-250-120-L6 120V 250W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10040 HFQ-250-200-L4 200V 250W Quartz Heaterr Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10058 HFQ-250-230-L4 230V 250W Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10032 HFQ-250-240-L6 240V 250W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10047 HFQ-250-277-L6 277V 250W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10056 HFQ-300-200-L4 300W 200V Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10046 HFQ-300-220-L6 220V 300W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10024 HFQ-325-230-L6 230V 325W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10045 HFQ-375-120-L6 120V 375W Quartz Heater Quartz Infrared Heating Element with 6" Leads $46.05 Select
IRHHTQ10041 HFQ-375-200-L4 200V 375W Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10004 HFQ-375-230-L4 230V 375W Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10057 HFQ-500-200-L4 500W 200V Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
IRHHTQ10025 HFQ-500-230-L6 230V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $46.05 Select
IRHHTQ10006 HFQ-500-240-L4 240V 500W Quartz Heater Quartz Infrared Heating Element with 4" Leads $41.65 Select
HSQ Style Quartz Emitter
IRHHTQ10059 HSQ-500-230-L4 230V 500W Quartz Heater Quartz Infrared Heating Element with 4" Leads $56.28 Select
IRHHTQ10007 HSQ-500-240-L6 240V 500W Quartz Heater Quartz Infrared Heating Element with 6" leads $60.68 Select
IRHHTQ10063 HSQ-600-240-L6 240V 600W Quartz Heater Quartz Infrared Heating Element with 6" leads $60.68 Select
LFQ Style Quartz Emitter
IRHHTQ10042 LFQ-750-240-KTC-L4 240V 750W w/ Type K Thermocouple Quartz Infrared Heating Element with 4" Leads $148.57 Select
IRHHTQ10035 LFQ-750-240-L4 240V 750W Quartz Heater Quartz Infrared Heating Element with 4" Leads $72.37 Select
IRHHTQ10049 LFQ-800-277-L6 277V 800W Quartz Heater Quartz Infrared Heating Element with 6" leads $76.77 Select
IRHHTQ10021 LFQ-1000-240-L4 240V 1000W Quartz Heater Quartz Infrared Heating Element with 4" Leads $72.37 Select
IRHHTQ10065 LFQ-1250-230-L4 230V 1250W Quartz Heater Quartz Infrared Heating Element with 4" Leads $72.37 Select
QFQ Style Quartz Emitter
IRHHTQ10018 QFQ-75-240-L6 240V 75W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10062 QFQ-90-240-L6 240V 90W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10029 QFQ-125-240-L6 240V 125W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10039 QFQ-150-240-L4 240V 150W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10014 QFQ-200-120-L6 120V 200W Quartz Heater Quartz Infrared Heating Element with 6" leads $47.51 Select
IRHHTQ10008 QFQ-200-240-L4 240V 200W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10060 QFQ-250-230-L4 230V 250W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select
IRHHTQ10064 QFQ-250-240-L4 240V 250W Quartz Heater Quartz Infrared Heating Element with 4" Leads $43.11 Select

Other wattages/voltages are available and subject to engineering approval, please contact us.
Optional Controls:

Delivery time: We typically have these controls in stock for shipment in 1 working day plus the time of your selected UPS shipping method. Price below does not include shipping cost which is calculated using your address before entering your credit card number.

Item ID

Catalog#

Description

Price

Click "Select" below to see the actual quantity in stock
PAYNE10005 18TP-2-15 Payne Engineering 240 VAC Variable Voltage Control. Portable solid state power control. 15 amp fuse, 6 foot plug & cordset. Click here for more information. $192.05

Select
PAYNE10002 18TBP-2-15 Payne Engineering 240V Variable Temperature Controller, solid state power control, Click here for more information. $102.35

Select
