Chromalox Quartz Tubes

 Chromalox Electric Heaters and Controls
We are an authorized Chromalox® distributor.

Links to other products:
Mor Quartz Tube Elements
Fostoria Quartz Tube Elements

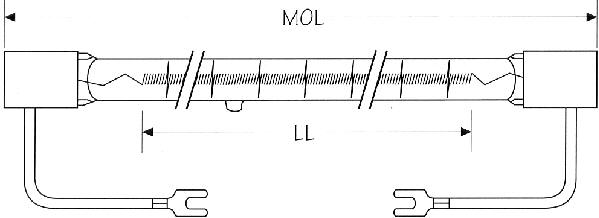

 Replacement Element

Chromalox® 3/8" (9.53 mm) and 1/2" (12.7 mm) quartz tubes. These tubes produce medium wave infrared radiation with a peak wavelength of approximately 2.55 mm (microns) for a wide range of commercial and industrial heat applications. Install in QRT quartz radiant heaters, LN or LW oven sections or LC-4 reflectors. The coiled high temperature alloy resistor is supported by the quartz sheath which encloses it. White cotton gloves should be worn when handling quartz elements. Never touch elements with bare hands because oils and contaminants from the skin could be deposited upon the quartz sheath and would cause hot spots and possibly premature failure. Most quartz tubes are made to order. All tubes are for horizontal burning position only.

bulletWatt density is 45 W/linear inch for 1/2" (12.7 mm) diameter, and 34 W/linear inch for 3/8" (9.53 mm) diameter
bullet0.35 to 4.3 kW
bullet120, 240, 480V
bulletSource temperature to 1600°F (871°C)
bulletOverall lengths for 3/8" (9.53 mm) dia. tube from 13 1/2" to 41 1/2"
bulletOverall lengths for 1/2" (12.7 mm) dia. tube from 13 1/2" to 99 1/2"

Applications

• Install in QRT quartz radiant heaters, LN or LW oven sections or LC-4 reflectors

• Produce intermediate infrared radiation with peak wavelength of approximately 2.55 microns for a wide range of commercial and industrial heat applications.

Construction

Coiled High Temperature Alloy Resistor is supported by the quartz sheath which encloses it.

CAUTION — White cotton gloves should be worn when handling quartz elements. Never touch elements with bare hands. Oils and contaminants from the skin could be deposited upon the quartz sheath and would cause hot spots and possibly premature failure.

Part #'s: Specify model, PCN, kW, volts and quantity:

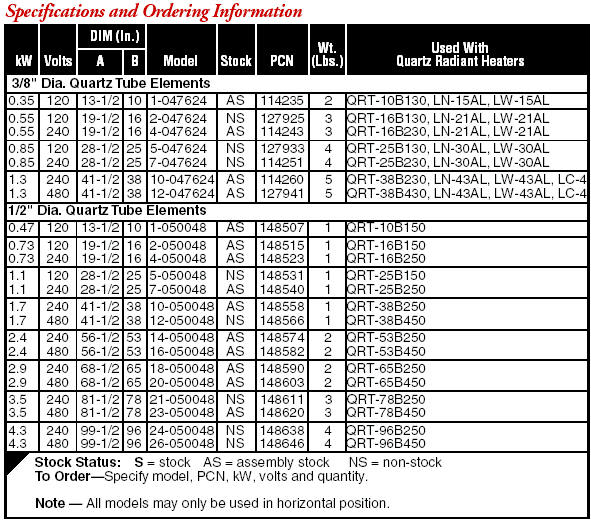

3/8" (9.53 mm) Dia. Quartz Tube Elements:
kW Volts Overall
Length (A)		 Lighted
Length (B)		 Model # Stock
PCN #
0.35 120 13-1/2" 10" 1-047624 114235
0.55 120 19-1/2" 16" 2-047624 127925
0.55 240 19-1/2" 16" 4-047624 114243
0.85 120 28-1/2" 25" 5-047624 127933
0.85 240 28-1/2" 25" 7-047624 114251
1.3 240 41-1/2" 38" 10-047624 114260
1.3 480 41-1/2" 38" 12-047624 127941
1/2" (12.7 mm) Dia. Quartz Tube Elements:
kW Volts Overall
Length (A)		 Lighted
Length (B)		 Model # Stock
PCN #
0.47 120 13-1/2" 10" 1-050048 148507
0.73 120 19-1/2" 16" 2-050048 148515
0.73 240 19-1/2" 16" 4-050048 148523
1.1 120 28-1/2" 25" 5-050048 148531
1.1 240 28-1/2" 25" 7-050048 148540
1.7 240 41-1/2" 38" 10-050048 148558
1.7 480 41-1/2" 38" 12-050048 148566
2.4 240 56-1/2" 53" 14-050048 148574
2.4 480 56-1/2" 53" 16-050048 148582
2.9 240 68-1/2" 65" 18-050048 148590
2.9 480 68-1/2" 65" 20-050048 148603
3.5 240 81-1/2" 78" 21-050048 148611
3.5 480 81-1/2" 78" 23-050048 148620
4.3 240 99-1/2" 96" 24-050048 148638
4.3 480 99-1/2" 96" 26-050048 148646

Secure online Credit Card ordering - SSL encryption.

Delivery times:
For heaters with a stock status of AS (Assembly Stock): These products are non-returnable. Typically ships in 8-17 workdays or less plus the time of your selected UPS shipping method.
For heaters with a stock status of NS (Non Stock): These products are non-returnable. Typically ships in 25-27 workdays or less plus the time of your selected UPS shipping method.

Note: For heaters with a stock status of NS (Non Stock): A minimum order amount is required by Chromalox and varies depending on the price of the product. The total dollar value per line item must be at least approximately 300.00.
Item Id Catalog No. Stock
Status		 Price

Click "Select" below to see the actual quantity in stock
CHROM114235 1-47624 120V1P .350KW AS $76.35 Select
CHROM127925 2-47624 120V1P .550KW NS $79.50 Select
CHROM114243 4-47624 240V1P .550KW AS $79.50 Select
CHROM127933 5-47624 120V1P .850KW NS $85.90 Select
CHROM114251 7-47624 240V1P .850KW NS $85.90 Select
CHROM114260 10-47624 240V1P 1.300KW AS $94.35 Select
CHROM127941 12-47624 480V1P 1.300KW AS $94.35 Select
CHROM148507 1-050048 120V1P .470KW NS $93.30 Select
CHROM148515 2-050048 120V1P .730KW AS $98.60 Select
CHROM148523 4-050048 240V1P .730KW AS $98.60 Select
CHROM148531 5-050048 120V1P 1.100KW NS $123.00 Select
CHROM148540 7-050048 240V1P 1.100KW AS $123.00 Select
CHROM148558 10-050048 240V1P 1.700KW AS $166.00 Select
CHROM148566 12-050048 480V1P 1.700KW NS $166.00 Select
CHROM148574 14-050048 240V1P 2.400KW AS $206.00 Select
CHROM148582 16-050048 480V1P 2.400KW AS $198.00 Select
CHROM148590 18-050048 240V1P 2.900KW AS $212.00 Select
CHROM148603 20-050048 480V1P 2.900KW AS $212.00 Select
CHROM148611 21-050048 240V1P 3.500KW NS $244.00 Select
CHROM148620 23-050048 480V1P 3.500KW AS $244.00 Select
CHROM148638 24-050048 240V1P 4.300KW NS $274.00 Select
CHROM148646 26-050048 480V1P 4.300KW NS $263.00 Select

Other Chromalox® products are available upon request. See our ordering page or fill out our contact form.
