Chromalox QRT Quartz Tube Reflector Assemblies

Order Online Secure Credit Card ordering online

Chromalox Electric Heaters and Controls
We are an authorized Chromalox® distributor.

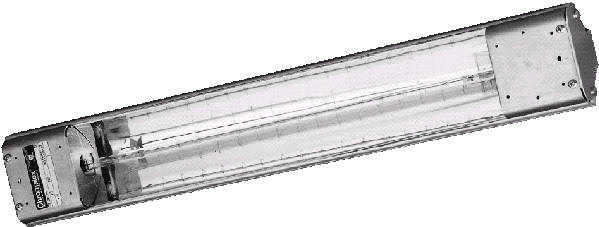

Complete ready to connect radiant heating assemblies manufactured by Chromalox®. The quartz tube elements are mounted in a sturdy extruded aluminum housing containing a highly polished aluminum parabolic reflector.

Featuring one 3/8" or 1/2" dia. quartz tube in a housing assembly available in lengths between 13 1/16" (33.18 cm) and 103 7/8" (2.64 m). Width is 3 11/16" (9.37 cm).

120, 240, 480 Volts
0.35 to 4.3 kW
1600°F (871°C) max. source temperature
1.33 kW/sq. ft. (3/8" quartz tube unit)
1.75 kW/sq. ft. (1/2" quartz tube unit)
Custom emitters (length, voltage and wattage) are available

Applications:

Roll Heating
Thermoforming
Laminating
Embossing
Post Forming
Film Shrinking Palletized Loads
Fused Coatings (Platisols, Organisols)
Preheat and Postheat Materials for Fluidized Bed Coatings, Ink and Paint Drying

Features:

Higher Operating Temperatures than metal sheath elements permit faster work speeds in some applications.
More Responsive Heat-Up/Cool-Down makes quartz tube heaters suitable for applications requiring immediate operating temperature and/or quickly reduced heat in event of work stoppage.
Quartz Elements are Highly Resistive to Thermal Shock but are subject to mechanical breakage. This can be minimized by careful handling and the use of protective grilles which are furnished separately.
Specially Designed Terminal Blocks adjust for 3/8 or 1/2" dia. quartz elements.
Process Temperature Control — Radiant heater output may be controlled with Chromalox SCR Power Controllers, Percentage Timing Input Controls and Non-Contact Temperature Sensors.

Construction:

Quartz Elements are Mounted in Sturdy Extruded Aluminum Housing containing a highly polished aluminum parabolic reflector.
Easy Horizontal Mounting Only — Mounting clamps and bolts are furnished for back attachment to straight or specially formed steel straps, etc. Housing may only be in any position in horizontal plane.
Highly Polished Aluminum Reflectors give good reflectivity and heat transfer, and are easily cleaned to maintain energy efficiency.

Ordering Information:



QRT with 3/8" Quartz Tube

QRT with 1/2" Quartz Tube

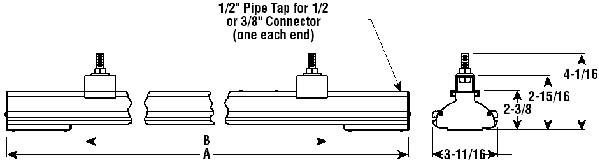

Overall Length A Heated Length B kW Volts Model # Replacement Element kW Volts Model Replacement Elements Optional Grill
18-1/16 10 0.35 120 QRT-10B130 1-047624 0.47 120 QRT-10B150 1-050048 (1) GR-800
24-1/16 18 0.55 120 QRT-16B130 2-047624 0.73 120 QRT-16B150 2-050048 (1) GR-2
24-1/16 18 0.55 240 QRT-16B230 4-047624 0.73 240 QRT-16B250 4-050048 (1) GR-2
33-1/16 25 0.85 120 QRT-25B130 5-047624 1.1 120 QRT-25B150 5-050048 (1) GR-3
33-1/16 25 0.85 240 QRT-25B230 7-047624 1.1 240 QRT-25B250 7-050048 (1) GR-3
45-15/16 38 1.3 240 QRT-38B230 10-047624 1.7 240 QRT-38B250 10-050048 (1) GR-4
45-15/16 38 1.3 480 QRT-38B430 12-047624 1.7 480 QRT-38B450 12-050048 (1) GR-4
60-15/16 53 — — — — 2.4 240 QRT-53B250 14-050048 (1) GR-5
60-15/16 53 — — — — 2.4 480 QRT-53B450 16-050048 (1) GR-5
72-9/16 65 — — — — 2.9 240 QRT-65B250 18-050048 (1) GR-6
72-9/16 65 — — — — 2.9 480 QRT-65B450 20-050048 (1) GR-6
85-7/8 78 — — — — 3.5 240 QRT-78B250 21-050048 (2) GR-4
85-7/8 78 — — — — 3.5 480 QRT-78B450 23-050048 (2) GR-4
103-7/8 96 — — — — 4.3 240 QRT-96B250 24-050048 (1) GR-2
(2) GR-4
103-7/8 96 — — — — 4.3 480 QRT-96B450 26-050048 (1) GR-2
(2) GR-4

Chromalox® Accessories and Special Features


Protective grills - Optional snap-in sections help protect personnel and work from contact with hot elements.
Special voltage and wattage within practical limits
Interlocking connections between two or more units
Companion reflector - Optional radiant companion reflectors improve oven efficiency.
Single end wiring
Special lengths
Terminal boxes for use with elements separately
Pipe Plug - Used to close tapped wiring entry holes.
Replacement quartz tubes and lamps.

Secure online Credit Card ordering - SSL encryption.

Delivery times:
 For heaters with a stock status of ST (Stock): Typically in 5-7 workdays or less plus the time of your selected UPS shipping method.
For heaters with a stock status of AS (Assembly Stock): These products are non-returnable. Typically ships in 8-17 workdays or less plus the time of your selected UPS shipping method.
For heaters with a stock status of NS (Non Stock): These products are non-returnable. Typically ships in 25-27 workdays or less plus the time of your selected UPS shipping method.
Item Id Catalog No. Stock
Status		 Price

Click "Select" below to see the actual quantity in stock
CHROM118607 QRT-10B130 120V1P .350KW NS $215.00 Select
CHROM118615 QRT-16B130 120V1P .550KW NS $251.00 Select
CHROM118623 QRT-16B230 240V1P .550KW NS $251.00 Select
CHROM118631 QRT-25B130 120V1P .850KW NS $293.00 Select
CHROM118640 QRT-25B230 240V1P .850KW NS $293.00 Select
CHROM118658 QRT-38B230 240V1P 1.300KW NS $353.00 Select
CHROM118666 QRT-38B430 480V1P 1.300KW NS $353.00 Select
CHROM118674 QRT-10B150 120V1P .470KW NS $242.00 Select
CHROM118682 QRT-16B150 120V1P .730KW NS $278.00 Select
CHROM118690 QRT-16B250 240V1P .730KW NS $278.00 Select
CHROM118703 QRT-25B150 120V1P 1.100KW NS $320.00 Select
CHROM118711 QRT-25B250 240V1P 1.100KW NS $320.00 Select
CHROM118720 QRT-38B250 240V1P 1.700KW NS $381.00 Select
CHROM118738 QRT-38B450 480V1P 1.700KW NS $381.00 Select
CHROM118746 QRT-53B250 240V1P 2.400KW NS $421.00 Select
CHROM118754 QRT-53B450 480V1P 2.400KW NS $421.00 Select
CHROM118762 QRT-65B250 240V1P 2.900KW AS $481.00 Select
CHROM118770 QRT-65B450 480V1P 2.900KW NS $481.00 Select
CHROM118789 QRT-78B250 240V1P 3.500KW NS $530.00 Select
CHROM118797 QRT-78B450 480V1P 3.500KW NS $530.00 Select
CHROM118800 QRT-96B250 240V1P 4.300KW NS $655.00 Select
CHROM118818 QRT-96B450 480V1P 4.300KW NS $655.00 Select

Other Chromalox® products are available upon request. See our ordering page or fill out our contact form.
