Solaira Cosy All Weather Outdoor Quartz Infrared Heater, 1.5 kW, 120 or 1.5 kW and 2.0 kW, 240 Volt

We are an authorized distributor for Solaira (Inforesight Consumer Products Inc.)

Links to other Solaira products:

	Commercial All Weather High Output Outdoor Quartz Heater.  120 or 240 Volts.  Weatherproof - Water and snow resistant construction.  120 Volt includes a 6 foot cord, no plug included.
	Cosy Heat Quartz Heater.  For indoor/protected outdoor covered area’s.  240 Volt, 1,500 or 2,000 Watt with no cord and no plug and with a terminal box ready to be direct/hard wired.
	Commercial High Output (HOS) 1,500 or 3,000 Watt Indoor/Protected Outdoor Quartz Heater.  120 or 240 Volts.  Available in single or double emitter options. 120 Volt models have 6’ of cable (no plug)
	120/240 Variable Volt Control for Quartz Heaters.  Indoor/outdoor weatherproof, digital, solid-state power control adjusts heat output from 10% to 100%. The on/off switch with “SOFT START” feature will bring the power up slowly to the emitter. Up/down controls, heater level on the LED front panel. 115-120 VAC up to 1600 Watt, 208-240 VAC up to 3200 Watt.

• 1500 Watts
• IP65 rated Rain and snow proof
• High Output, Professional Grade
• 5000 hour emitter lamp life
• Ideal for restaurant, under awnings
• Low maintenance
• cETLus, CE approved
• cTUVus certified
• IPX rated
• Universal mounting bracket
• Approx. coverage 36 square feet (approx. 6' X 6')
• Available in Black or White
• Dimensions: 15-1/2” x 4" x 4"
• Mounting height/ Clearance above: 7’9"/1'
• Sleek, aluminum extrusion styled fixture
• 1.5kW/2kW (240V) Philips IPX gold lamp options
• Scratch resistant hard wearing powder coating
• Safety guards
• Bracket allows vertical & horizontal adjustment
• White and black color options
• Ideal for ALL patio, under awning, indoor windy/cold reception area’s
•
          Solaira heaters are a better solution than the gas/propane option. GO GREEN WITH SOLAIRA HEATERS

Available in either:

• 120 Volt, 1,500 Watt with a 15 foot cord and standard household plug (Plugs into standard 120V GFI wall plug). 12.5 Amps, 5,115 BTU's.
• 240 Volt, 1,500 or 2,000 Watt with no cord and no plug and with a terminal box ready to be direct/hard wired. 6.25 or 8.33 Amps and 5,115 or 6,820 BTU's.

Click here for a larger image

Click here for a larger image

Click here for a larger image

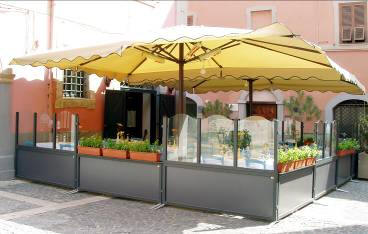

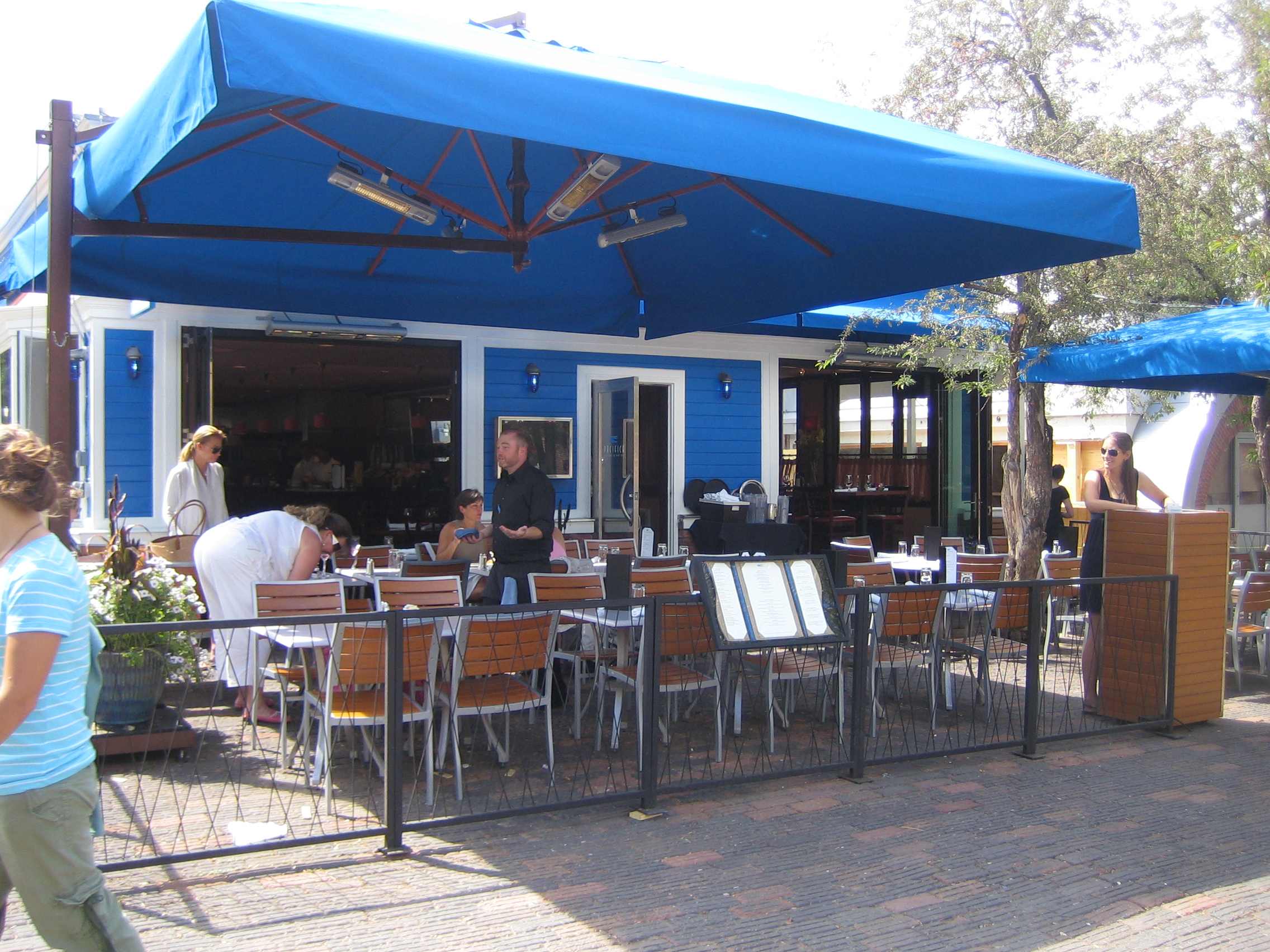

ENGINEERED FOR COMMERCIAL GRADE UMBRELLAS, PLEASE ASSURE CLEARANCES ARE RESPECTED AS PER INSTRUCTIONS

Click here for a larger image

Specifications

* Heat Zone and actual heat density will vary based on mounting height and angle of heater (Overhead mounted heat zones will be different then this guide). Please use this as a guideline only and contact Solaira for a more detailed specifier guide.

Click here for a larger image

Cut Sheet

.pdf format (You must have the free Adobe Acrobat Reader plug-in.)

Optional Controls:
	Solaira 120/240 Volt Control for Quartz Heaters.  Variable Heat Controller is a weatherproof, digital, solid-state power control designed to adjust heat output from 10% to 100%. On/off switch, “SOFT START” brings the power up slowly to increase emitter life. Up/down controls with heater level shown on the LED front panel. Installation in both indoor or outdoor applications including wet environments. Controls Quartz lamps or tubes of 115- 120 VAC up to 1600 Watt, 208- 240 VAC up to 3200 Watt.
	Fostoria VHC-32 Variable 208/240 Volt Controller. Solid-state power control designed to provide a convenient way to adjust heat output on electric infrared heating elements. Control heaters on patios, in shelter houses or other protected outdoor environments. It can operate up to a maximum of 3200 watts. Not for residential use.
	Fostoria FTC-30 30-Minute Manual Timer. Includes time switch, wall plate and knob control. 120/208/240 Volts, 28 Max. Amps.

Secure Online Ordering Delivery time for the following products: Typically shipped in 1 working day or less.  The transit time to you depends on your physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.
Item ID	Catalog #	Description	Click "Select" below to view the price and the actual real-time quantity in stock of the item & accessories.
120 Volt:
SOLAIRA10037	SCOSYAW15120B	Solaira Cosy 120 Volt - 1500 Watt - Black - 12.5 Amps
SOLAIRA10039	SCOSYAW15120W	Solaira Cosy 120 Volt - 1500 Watt - White - 12.5 Amps
SOLAIRA10057	SWIREAW15120	Replacement Element - 120 Volt - 1,500 Watt
240 Volt:
SOLAIRA10038	SCOSYAW15240B	Solaira Cosy 240 Volt - 1500 Watt - Black - 6.25 Amps
SOLAIRA10040	SCOSYAW15240W	Solaira Cosy 240 Volt - 1500 Watt - White - 6.25 Amps
SOLAIRA10045	SCOSYAW20240B	Solaira Cosy 240 Volt - 2000 Watt - Black - 8.34 Amps
SOLAIRA10046	SCOSYAW20240W	Solaira Cosy 240 Volt - 2000 Watt - White - 8.34 Amps
SOLAIRA10058	SWIREAW15240	Replacement Element - 240 Volt - 1,500 Watt
SOLAIRA10059	SWIREAW20240	Replacement Element - 240 Volt - 2,000 Watt
SOLAIRA10076	SCOSY-XL-AW20240-S	Solaira Cosy XL (with lights) 240 Volt -2000 Watt - 8.33 Amps
Optional Controls and Accessories:
SOLAIRA10044	SCTR120-240	120, 208 or 240 Volt Variable Controller for Quartz Heaters
FOST485357	VHC-32	Fostoria VHC-32, Variable 208/240 Volt Controller
FOST445955	FTC-30	Fostoria FTC-30, 208/240 Volt, 30-Minute Manual Timer
