Qmark® Type FRP/FRS 2 or 3 Element Quartz or Metal Element Spot Heaters


2 Element Enclosure

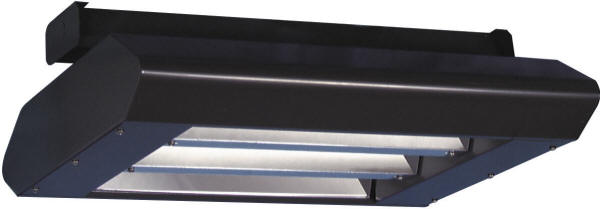

3 Element Enclosure


 FRS2

Qmark Electric Heating Products
We are an authorized distributor for Qmark®.

bulletTotal or supplement (spot) heating in commercial and industrial areas, assembly lines, aircraft hangers, outside smoking areas, work stations and shipping areas.
bulletSnow melting for waiting areas and entryways, stairs, parking lots, driveways and loading docks, smoking areas.
bulletDouble element and three element heaters provide concentrated heating capacity in a single infrared radiant heater.

STANDARD FEATURES
bullet4 different enclosure options:

2 or 3 Element Type FRP - 20 gauge galvannealed painted steel enclosure and heater support / wiring compartment painted in a Statuary Bronze powder coat finish.

2 or 3 Element Type FRS -Type 303, brush finished, 20 gauge, stainless steel enclosure and heater support / wiring compartment for applications requiring additional corrosion resistance.

bulletDimensions: (Length varies with Catalog #, see chart below)
Two element design.
7.125" H x 15" W
Three element design.
7.125" H x 21.5" W
bulletHeavy gauge bright anodized aluminum reflectors (Optional - gold anodized), offer a wide selection of beam patterns.
bulletEasy one person installation - attach upper mounting support to ceiling or optional wall bracket, rough in wiring, hang heater by tabs to complete wiring, swing heater into place to complete installation.

ELEMENTS

Metal Sheath, Quartz Tube or Quartz Lamp elements - used interchangeably provide the flexibility necessary for multiple application projects.
Metal sheathed elements - used indoors or outdoors protected from the wind, in areas where physical abuse is a problem.  Quartz Tube and Quart Lamp used indoors and outdoors in areas where abuse is not a problem for snow melting and spot heating.
Pigtail element leads for a more positive connection on applications where physical abuse is a problem.

APPLICATION LIMITATIONS and PRECAUTIONS:

These heaters are not suitable for use in hazardous locations.

Mounting Clearances - Maintain minimum clearances of:
- 24(610 mm) to vertical side walls
- 36(914 mm) between heaters mounted side by side. Heaters may be mounted end to end.
- 6(152 mm) to ceiling
- 84(2134 mm) to floor.
        Maintain at least 5 ft. (1.5 m), in radiant path, between bottom of heater and combustible material.

Corrosive Atmospheres - The high quality finish and aluminized steel of the FRP series will give excellent service under normal to severe operating conditions, including coastal salt air and most industrial atmospheres. However for severe conditions such as swimming pool, green houses, etc., the FRS stainless steel enclosure should be used.

2 Element Enclosure Only: (Elements not included)
Catalog# Reflector Angle Length Metal Sheath Wattage Quartz Tube Wattage Quartz Lamp Wattage
FRP2-23S 30 Sym 24(610) 1700 2000 3200
FRP2-26S 60 Asym 24(610) 1700 2000 3200
FRP2-26AS 60 Asym 24(610) 1700 2000 3200
FRP2-29S 90 Sym 24(610) 1700 2000 3200
FRP2-33S 30 Sym 33(838) 3000 3000 5000
FRP2-36S 60 Sym 33(838) 3000 4000 5000
FRP2-36AS 60 Asym 33(838) 3000 4000 5000
FRP2-39S 90 Sym 33(838) 3000 4000 5000
FRP2-43S 30 Sym 46(1168) 4000 6000 7300
FRP2-46S 60 Sym 46(1168) 4000 6000 7300
FRP2-46AS 60 Asym 46(1168) 4000 6000 7300
FRP2-49S 90 Sym 46(1168) 4000 6000 7300
Catalog # Reflector Angle Length Metal Sheath Wattage Quartz Tube Wattage Quartz Lamp Wattage
FRS2-23S 30 Sym 24(610) 1700 2000 3200
FRS2-26S 60 Asym 24(610) 1700 2000 3200
FRS2-26AS 60 Asym 24(610) 1700 2000 3200
FRS2-29S 90 Sym 24(610) 1700 2000 3200
FRS2-33S 30 Sym 33(838) 3000 4000 5000
FRS2-36S 60 Sym 33(838) 3000 4000 5000
FRS2-36AS 60 Asym 33(838) 3000 4000 5000
FRS2-39S 90 Sym 33(838) 3000 4000 5000
FRS2-43S 30 Sym 46(1168) 4000 6000 7300
FRS2-46S 60 Sym 46(1168) 4000 6000 7300
FRS2-46AS 60 Asym 46(1168) 4000 6000 7300
FRS2-49S 90 Sym 46(1168) 4000 6000 7300

3 Element Enclosure Only:  (Elements not included)

Catalog # Reflector Angle Length Metal Sheath Wattage Quartz Tube Wattage Quartz Lamp Wattage
FRP3-23S 30 Sym 24(610) 2550 3000 4800
FRP3-26S 60 6ym 24(610) 2550 3000 4800
FRP3-26AS 60 Asym 24(610) 2550 3000 4800
FRP3-29S 90 Svm 24(610) 2550 3000 4800
FRP3-33S 30 Sym 33(838) 4500 6000 7500
FRP3-36S 60 Sym 33(838) 4500 6000 7500
FRP3-36AS 60 Asym 33(838) 4500 6000 7500
FRP3-39S 90 Sym 33(838) 4500 6000 7500
FRP3-43S 30 Syrn 46(1168) 6000 9000 10050
FRP3-46S 60 Sym 46(1168) 6000 9000 10050
FRP3-46AS 60 Asym 46(1168) 6000 9000 10050
FRP3-49S 90 Sym 46(1168) 6000 9000 10050
Catalog # Reflector Angle Length Metal Sheath Wattage Quartz Tube Wattage Quartz Lamp Wattage
FRS3-23S 30 Sym 24(610) 2550 3000 4800
FRS3-26S 60 6ym 24(610) 2550 3000 4800
FRS3-26AS 60 Asym 24(610) 2550 3000 4800
FRS3-29S 90 Svm 24(610) 2550 3000 4800
FRS3-33S 30 Sym 33(838) 4500 6000 7500
FRS3-36S 60 Sym 33(838) 4500 6000 7500
FRS3-36AS 60 Asym 33(838) 4500 6000 7500
FRS3-39S 90 Sym 33(838) 4500 6000 7500
FRS3-43S 30 Syrn 46(1168) 6000 9000 10050
FRS3-46S 60 Sym 46(1166) 6000 9000 10050
FRS3-46AS 60 Asym 46(1168) 6000 9000 10050
FRS3-49S 90 Sym 46(1168) 6000 9000 10050

Secure online Credit Card ordering - SSL encryption.
*delivery time: typically ships in 7-10 workdays or less plus allow additional time for your selected UPS or FedEx shipping method. Price below does not include shipping cost which is calculated using your address before entering your credit card number.

Item ID

Catalog #

 Reflector Angle Length Wattage Volts

Price

Click "Select" below
2 Element Heaters packaged with 2 quartz lamps in one carton:
Painted:
QMARK685360028330 FRP2-23S-24L 30 Sym 24(610) 3200 240 $379.50 Select
QMARK685360028415 FRP2-26AS-24L 60 Asym

24(610)

3200

 240 $379.50 Select
QMARK685360029207 FRP2-46S-48L 60 Sym 46(1168) 7300 480 $630.00 Select
Stainless Steel:
QMARK685360030531 FRS2-23S-24L 30 Sym 24(610) 3200 240 $478.50 Select
QMARK685360030692 FRS2-26S-24L 60 Sym 24(610) 3200 240 $478.50 Select
QMARK685360030777 FRS2-29S-24L 90 Sym 24(610) 3200 240 $478.50 Select
QMARK685360031415 FRS2-46S-48L 60 Sym 46(1168) 7300 480 $759.00 Select
3 Element Heaters packaged with 3 quartz lamps in one carton:
Painted:
QMARK685360029375 FRP3-23S-24L 30 Sym 24(610) 4800 240 $544.50 Select
QMARK685360029535 FRP3-26S-24L 60 Sym 24(610) 4800 240 $544.50 Select
QMARK685360029450 FRP3-26AS-24L 60 Asym 24(610) 4800 240 $544.50 Select
QMARK685360029610 FRP3-29S-24L 90 Svm 24(610) 4800 240 $544.50 Select
QMARK685360030289 FRP3-46S-48L 60 Sym 46(1168) 10050 480 $920.25 Select
Stainless Steel:
QMARK685360031583 FRS3-23S-24L 30 Sym 24(610) 4800 240 $681.00 Select
QMARK685360031743 FRS3-26S-24L 60 Sym 24(610) 4800 240 $681.00 Select
QMARK685360031668 FRS3-26AS-24L 60 Asym 24(610) 4800 240 $681.00 Select
QMARK685360031828 FRS3-29S-24L 90 Svm 24(610) 4800 240 $681.00 Select
QMARK685360032191 FRS3-36S-48L 60 Sym 33(838) 7500 480 $891.75 Select
QMARK685360032474 FRS3-46S-48L 60 Sym 46(1166) 10050 480 $1,098.75 Select
Optional Accessories:
QMARK685360084022 FRPATMB FRP Adj Tilt Mting Bracket - FRP Series $39.15 Select
QMARK685360084039 FRPWMB FRP Bracket - FRP Series $105.98 Select
QMARK685360084046 FRSATMB FRP - FRS Series $48.90 Select
QMARK685360084053 FRSWMB FRP Mting Bracket Stainless Steel - FRs Series $118.20 Select
*This delivery time is for normal conditions and is subject to Qmark factory availability.

Optional Controls: Payne Engineering 18D-H Variable Voltage Controls

Delivery time for the following products: Typically not in stock. Processed/shipped in 17-24 working days or less.  The transit time to you depends on your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart.

Item ID

Catalog #

 INPUT VOLTS PHASE MAX. AMPS KVA @ MAX RATED VOLTS

Price

Click "Select" below
PAYNE10066 18D-2-30H 240 Single 30 7.2 $273.70 Select
PAYNE10009 18D-2-30H with Enclosure 240 Single 30 7.2 Call for Price
PAYNE10039 18D-2-80H 240 Single 80 19.0 $489.90 Select
PAYNE10029 18D-2-80H-with Enclosure 240 Single 80 19.0 Call for Price

Qmark® is a registered trademark of Marley Engineered Products.
