Fostoria Portable
Job-Site Comfort Heating Assemblies
Click here for a larger image
FHK-624-1CA and FHK-212-1CA include 15' Cordset
w/ grounded plug.
 |
We are an authorized distributor for Fostoria
Industries, a manufacturer of infrared heating
systems. |
Industrial grade construction includes a gold anodized aluminum reflector, reflector inserts made from .032" (.813 mm)
BOS aluminum, unbreakable metal sheath heating coils, and a heavy duty safety screen.
Developed with
over 30 years of experience in the infrared industry. Electric infrared is clean, with no combustion by-products.
Click here for a larger image
FHK-212-1CA, 1.8kW - Includes 15' Cordset
w/ grounded plug.
Click here for a larger image
FHK-624-1CA - Includes 15' Type S, 3-wire Cord w/ a
#10/3 dryer plug.

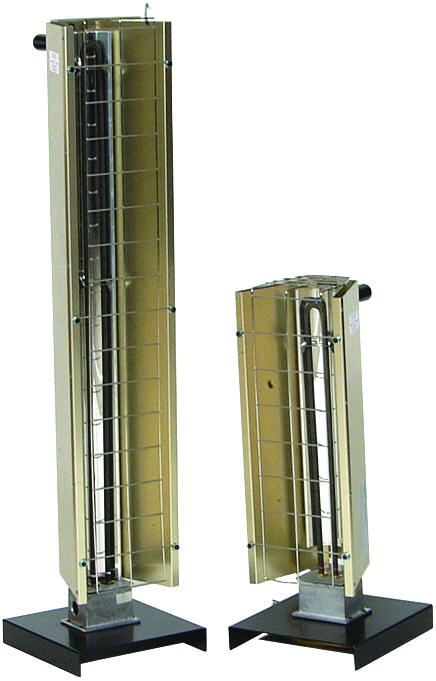

FHK-4 and FHK-2 Series
Click here for a larger image

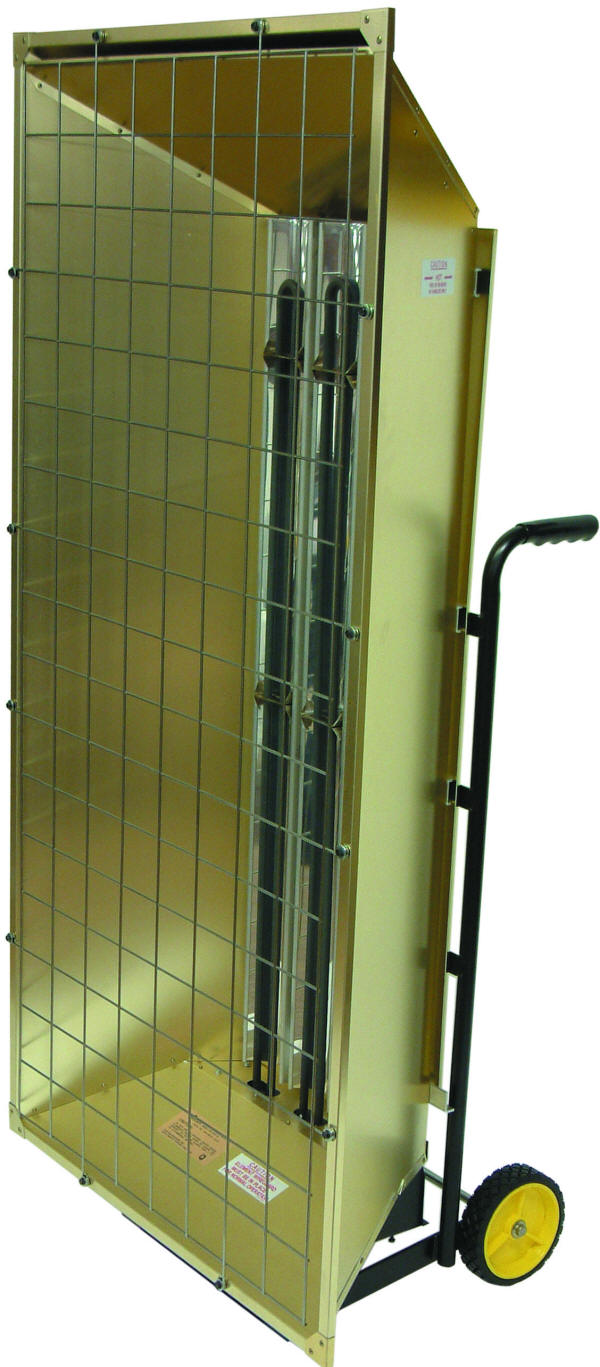

FHK-6
FHK-13
Click here for a larger image
FHK-13
| Square Foot Heated Per
Fixture: |
| Heater Wattage |
Non-Protected Area Size Sq.
Feet |
Semi-Protected Area Size Sq.
Feet |
| Below 35°F |
Above 35°F |
Below 35°F |
Above 35°F |
| 1.8/2.0 kW |
25 |
36 |
40 |
50 |
| 4.5 kW |
64 |
75 |
90 |
125 |
| 6.0 kW |
85 |
100 |
120 |
150 |
| 13.5 kW |
192 |
225 |
270 |
375 |
 |
To heat from 25 sq. ft. (2.32 sq. m) to 125 sq. ft. (11.61 sq. m) use the smaller hand-carry heat stands. They range in power from 1.8 kW to 4.5 kW. |
|
To heat from 85 sq. ft. (7.9 sq. m) to 375 sq. ft. (34.83 sq. m), use the more powerful 6.0 kW and 13.5 kW heaters. They are mounted on top resistant 2-wheel
welded steel carts for safety and ease of maneuverability. |
| Heater Wattage |
Dimensions |
| 1.8/2.0 kW |
28 1/2" x 12" x 12" |
| 4.5 kW |
48" x 12" x 12" |
| 6.0 kW |
37 3/4" x 19 7/8" x 16" |
| 13.5 kW |
58" x 27 1/2" x 19" |
|
Applications:
|
Industrial work stations |
|
Warehouse loading docks |
|
Spot heating for warehouse
counter areas |
|
Thawing frozen pipes |
|
Drying or curing
finishes/epoxies |
|
Farming operations |
|
Application Safety:
Required Clearance - Keep all combustible materials such as furniture, papers,
cloths and curtains at least 3 feet (1 meter) from all sides of heater. Metal
sheathed rods should never be operated at voltages in excess of that specified
on the data label. Over voltage operation or over voltage spikes can cause the
heating elements to fail in a dynamic manner which presents a definite fire hazard.
Install accordingly. |
| General Build Features:
Top view of Exclusive double-baffle engineered design with air gap, and
safety back plate provides for greater safety and a more rigid structure. |
|
Exclusive gold anodized aluminum
internal reflector/baffle provides maximum heating efficiency |
|
Zinc plated heavy-gauge
safety screen |
|
Tip resistant, steel (12ga.)
12"x12" base on 1.8, 2.0 and 4.5 kW models |
|
Steel two-wheeled cart,
(powder coated black), and large diameter wheels on the 6.0 and 13.5 kW
models |
|
|
Heavy-duty aluminum reflector
extrusion |
|
Even heat distribution in a
controlled 60° reflector pattern |
|
U-shaped inconel metal sheath
infrared heating element; nickel-chromium heating coil is embedded in magnesium
oxide powder . . . has a 5,000 hour average life. Elements factory installed
in fixtures. |
|
Cable Kits
available for models that do not include a cordset. |
|
TO-SK-1 Disconnect Switch
DC-SK-1 Disconnect Switch
Optional Controls:
|
|
240 Volt, Payne Engineering 18TBP-2-15 Variable Temperature Controller adjusts heat
output from 0-100%. 240 VAC Input, 0-235 VAC
Output, 50/60Hz (Also for 220/230 VAC Input) Can be used with
FHK-224-1A.
|
 |
Fostoria VHC-15 controller. Solid State Variable
Device controls heat loads up to 15-Amps. 208/240Volt "In-Line"
Controller. Can be used with
FHK-224-1A. |
 |
Fostoria
VHC-32 Variable 208/240 Volt Controller.
Solid-state power control designed to provide a convenient way to adjust
heat output on electric infrared heating elements. Control heaters on
patios, in shelter houses or other protected outdoor environments. It can
operate quartz lamps or quartz tubes up to a maximum of 3200 watts.
Not for residential use. Can be used with
FHK-224-1A. |
 |
Fostoria
FTC-30 30-Minute Manual Timer. Includes time switch, wall plate and knob
control. 120/208/240 Volts, 28 Max. Amps. |
 |
Solaira 120/240 Volt Control
for Quartz Heaters.
Variable Heat Controller is a
weatherproof, digital, solid-state power control designed to adjust heat output from 10% to 100%.
On/off switch, “SOFT START” brings the power up slowly to increase emitter life.
Up/down controls with heater level shown on the LED front panel.
Installation in both
indoor or outdoor applications including wet environments. Controls Quartz lamps or tubes of 115- 120 VAC up to 1600
Watt, 208- 240 VAC up to 3200
Watt., Can be used with
FHK-224-1A. |
|
Secure
Online Ordering
Delivery time for the following products: Typically
shipped in
1 working day or less. The transit time to you depends on your
physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart. Optional
Replacement
Elements
Optional Cable Kits |
| Item
ID |
Catalog # |
KW |
BTU |
VOLTS |
PHASE |
AMPS |
Price |
Click "Select" below |
| FOST881715 |
FHK-212-1CA |
1.8 |
6,134 |
120 |
1 |
15.0 |
$221.00 |
 |
| Delivery time for the following products: Typically
shipped in
5-7 working days or less. The transit time to you depends on your
physical location and your selected UPS/FedEx shipping method, the cost of which will be displayed in your shopping cart. |
| FOST881739 |
FHK-224-1A |
2.0 |
6,826 |
240 |
1
|
8.5 |
$265.20 |
|
| FOST881753 |
FHK-248-1A |
2.0 |
6,826 |
480 |
1
|
4.2 |
$265.20 |
|
| FOST881784 |
FHK-424-1A |
4.5 |
15,358 |
240 |
1
|
18.8 |
$296.40 |
|
| FOST881807 |
FHK-448-1A |
4.5 |
15,358 |
480 |
1
|
9.5 |
$296.40 |
|
| FOST882798 |
FHK-624-1CA |
6.0 |
20,478 |
240 |
1 |
25.0 |
$442.52 |
|
| FOST882910 |
FHK-624-3A |
6.0 |
20,478 |
240 |
3
|
14.5 |
$510.60 |
|
| FOST882934 |
FHK-648-3A |
6.0 |
20,478 |
480 |
3
|
7.5 |
$510.60 |
|
| FOST882965 |
FHK-1324-3A |
13.5 |
46,076 |
240 |
3
|
33.0 |
$847.20 |
Cannot ship UPS |
| FOST882989 |
FHK-1348-3A |
13.5 |
46,076 |
480 |
3 |
17.0 |
$847.20 |
Cannot ship UPS |
CABLE KITS (OPTIONAL 25' POWER CORD)
Cable packages includes 25 feet Type SO cable, with either 3-conductors
or 4-conductors, depending on the fixture requirements,
ring terminals, proper cord grip (connector).
Plug is not included. |
|
Item ID |
Catalog # |
Type |
Fits Model(s): |
Price |
Click "Select" below |
| FOST880435 |
880435 |
16/3 SO |
FHK-224-1A, FHK-248-1A |
$48.00 |
|
| FOST880466 |
880466 |
14/3 SO |
FHK-448-1A |
$54.00 |
|
| FOST880497 |
880497 |
14/4 SO |
FHK-624-3A, FHK-648-3A |
$67.80 |
|
| FOST880459 |
880459 |
12/3 SO |
FHK-424-1A |
$67.80 |
|
| FOST316422 |
316422 |
12/4 SO |
FHK-1348-3A |
$78.00 |
|
| FOST880442 |
880442 |
10/3 SO |
FHK-624-3A (Must wire single phase) |
$75.00 |
|
| FOST880527 |
880527 |
8/3 SO |
FHK-1348-3A (Must wire single phase) |
$126.00 |
|
| FOST880510 |
880510 |
8/4 SO |
FHK-1324-3A |
$142.80 |
|
|
Optional Controls: |
| PAYNE10002 |
18TBP-2-15 |
Payne Engineering
240V Variable Temperature Controller,
Click here for more information. 15 Amps max. - Can be used with
FHK-224-1A. |
$102.35 |
|
| FOST10001 |
VHC-15 |
Fostoria
controller
for loads up to 15-Amps. 208/240Volt
"In-Line" Controller. Can be used with
FHK-224-1A. |
$88.28 |
|
| FOST485357 |
VHC-32 |
Fostoria Variable
208/240 Volt Controller up to a
maximum of 3200 watts. |
$220.80 |
|
| FOST445955 |
FTC-30 |
Fostoria
30-Minute Manual Timer. Inline or connect to contactor panel. Includes
time switch, wall plate and knob control. 120/208/240 Volts, 28 Max. Amps |
$85.20 |
|
| SOLAIRA10044 |
SCTR120-240 |
Solaira 120, 208 or
240 Volt Variable Controller for Quartz Heaters |
$183.33 |
|
|
Replacement
Elements |
|
Item
ID |
Catalog # |
Watts |
Volts |
Overall Length |
Heated Length |
Fits Model(s): |
Price |
Click "Select" below |
| FOST445870 |
641-37211 |
1800 |
120 |
23-1/16" |
18" |
FHK212-1CA |
$69.16 |
|
| FOST445832 |
641-35661 |
2000 |
208 |
23-1/16" |
18" |
All 2.0 kw & 6.0 kw |
$69.16 |
|
| FOST445795 |
641-35611 |
2000 |
240 |
23-1/16" |
18" |
$69.16 |
|
| FOST445849 |
641-36051 |
2000 |
277 |
23-1/16" |
18" |
$69.16 |
|
| FOST445801 |
641-35621 |
2000 |
480 |
23-1/16" |
18" |
$69.16 |
|
| FOST445887 |
641-50011 |
2000 |
600 |
23-1/16" |
18" |
$69.16 |
|
| FOST445856 |
641-36061 |
4500 |
208 |
44-7/16" |
39" |
All 4.5 kw & 13.5 kw |
$91.00 |
|
| FOST445818 |
641-35631 |
4500 |
240 |
44-7/16" |
39" |
$91.00 |
|
| FOST445863 |
641-36071 |
4500 |
277 |
44-7/16" |
39" |
$91.00 |
|
| FOST446174 |
641-35641 |
4500 |
480 |
44-7/16" |
39" |
$91.00 |
|
| FOST445894 |
641-50021 |
4500 |
600 |
44-7/16" |
39" |
$91.00 |
|
Other Fostoria
