Blasdel COR Coil-O-Rod Generator Infrared Heating Elements
We are an authorized distributor for Blasdel Enterprises, Inc.
 |
COR generators are best suited to powder coating, baked enamels, moisture dry off, softening plastics for compression
molding or vacuum forming, degreasing, etc. where higher temperatures than the ceramic
generators are required. Fast start-up, within three minutes, is possible with this type of element. Properly controlled, the desired temperature can be accurately maintained. Exceptionally long service life. On average, one can expect about
10,000 hours, however much longer is not uncommon. Proper controls must be used to achieve this performance.
|
 |
These elements deliver fast
start-up in only three minutes and are available in 500, 750, 1000, 1500,
2000 and 3000 watts. Ideally suited for:
 |
Powder coating |
|
Baked enamels |
|
Moisture dry off |
|
Vacuum Forming |
|
Degreasing |
|
Softening plastics for compression
molding |

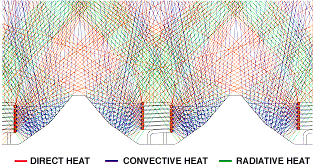

These heaters are 90% heat
transfer efficient by producing medium wave infrared as well as convection
heat. Both Blasdel
ceramic generators or COR elements have a 12” square aluminum reflector
located behind the element to accurately direct the radiant heat towards the
product, in a uniform pattern, providing an effective target zone. Aluminum
is second only to gold in its ability to reflect the radiant heat towards
the product. If the reflector is clean and efficient, you can touch the
reflector even after the oven has been on for hours. Reflectors need to be
cleaned if reflector is hot to the touch. |
 |
 |
DIAL-O-TEMP
SECTIONS AND REPLACEMENT REFLECTORS:
The specular reflector projects a square
heat pattern that provides even heat distribution with the emitter 8" away from
the product. This eliminates hot and cold spots commonly found in round or
trough-shaped reflectors. A simple maintenance program will keep the reflectors
at peak performance level.
Blasdel Enterprises offers aluminum reflectors as
standard, or stainless steel reflectors as an option. Disposable reflectors are
available for special applications.

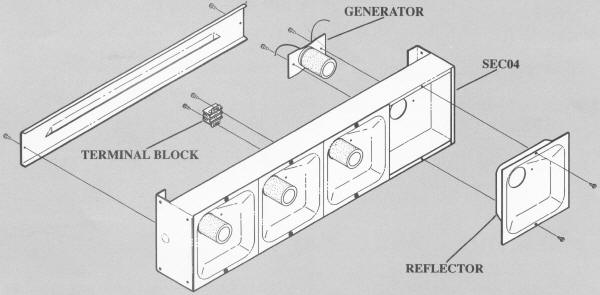

| Dial-O-Temp Sections: (Includes
standard aluminum reflector, terminal block and wiring) (Heaters not included) |
| Part # |
# of
Generators |
Length |
Width |
Depth |
Price |
| SEC01 |
1 |
12" |
12" |
6 3/4" |
$196.15
 |
| SEC02 |
2 |
24" |
12" |
6 3/4" |
$287.69
|
| SEC03 |
3 |
36" |
12" |
6 3/4" |
$379.23
|
| SEC04 |
4 |
48" |
12" |
6 3/4" |
$444.62
|
| SEC05 |
5 |
60" |
12" |
6 3/4" |
$562.31
|
| SEC06 |
6 |
72" |
12" |
6 3/4" |
$680.00
|
| SEC07 |
7 |
84" |
12" |
6 3/4" |
$627.69
|
| Replacement reflectors: |
| Part # |
Description |
Price |
| REF12A040 |
Standard
Aluminum Reflector |
$34.00
|
| REF12D002 |
Disposable
Aluminum Reflector |
$7.85
|
|
