Chromalox ChromaStar™ Infra-Red Radiant Heaters
1.5 - 2 kW Portable
We are an authorized Chromalox®
distributor.
13.5 kW Portable |
4.5 kW Fixed
6 kW Fixed
 | 1.5 to 13.5 kW |
| 5,118 to 46,062 BTU/Hr |
| 120, 208, 240, 277, 480, and 600 Volts |
| Single or 3 Phase - Most Models Field
Convertible |
| Fixed Overhead - Convertible to Portable |
| Portable/Factory Assembled |
| Optional Accessories:
- Ground Fault
- Disconnect
- Tip Over Shut Down |
|  UL Listed,
 CSA Registered |
| Model#: STAR-02-11-PC Includes 6 foot cord and 2-prong
grounding type plug. |
|
Applications
| Localized heating in large plants |
| Loading Docks |
| Narrow warehouse aisle heating |
| Garages |
| Dry paint |
| Prevent freezing of pipes, valves |
| Heat hoppers |
|
Description
The Chromalox ChromaStar™ infra-red comfort heaters
are designed to provide a rugged source of heat for
use in areas where dependence on air movement is
impractical. The heaters are versatile, designed
to provide warmth directly where it is needed for primary or spot heating applications. Each unit
is constructed for long life and requires minimal
maintenance. There are no moving parts or motors to
wear out, no air filters or lubrication required. All Chromalox ChromaStar™ radiant heaters
feature the exclusive "Arctic End" Patent Pending
heating element terminal construction. This feature
lowers the terminal box temperatures resulting in
extended element and wiring life. Extruded aluminum housings are rigid to provide
added protection to the heating elements located at
the focal point of a built-in mirrored aluminum

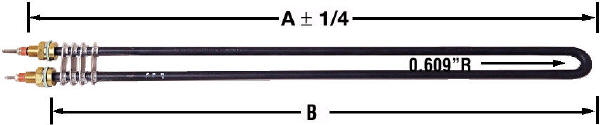

reflector(s). The heater(s) consist of hairpin bent
.430" diameter alloy sheath tubular element(s) constructed of high quality
resistance wire embedded in carefully selected MgO refractory insulation.
The element(s) feature
"Arctic end" terminal construction for longer life and
cooler terminal enclosure temperatures.
The element(s)
also feature terminal construction using a waged-in silicone bushings that produce unequalled resistance to moisture absorption. The heating
element(s) connect to a gasketed, moisture resistance
terminal enclosure with liquid-tight bulkhead threaded
fittings. An extension reflector constructed of 0.050" mirrored aluminum extends over the assembly to
provide a more uniform heating pattern.

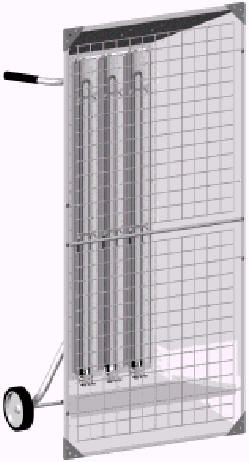

Portable
All portable heaters are supplied fully assembled
to a rugged, chrome-nickel plated tubular steel cart
and handle (1.5 and 2.0 kW heater has a fixed
pedestal). The cart
features large wheels for easy portability. All
portable heaters include safety grills to protect
personnel from contacting hot elements. Field wiring is accomplished through a
3/4" conduit opening in terminal enclosure. The 1.5 kW unit (Model#: STAR-02-11-PC)
comes complete with a factory
installed 6 foot cord and 2 prong grounding type plug.
Other models can be field wired using accessory cable
and plug kits shown.

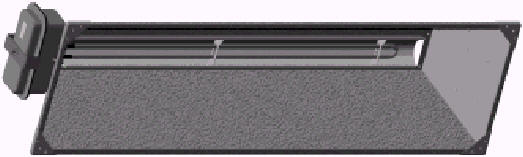

Fixed Overhead
The Chromalox ChromaStar™ radiant heater is shipped
fully assembled and can be hung from the ceiling with
2 chains or rigid angle brackets attached to the
heater brackets located on the back of the heater. Field wiring is accomplished through the liquid
tight terminal enclosure. No secondary splice box
required. Protective screens, disconnect switches and portable carts are available for these heaters
as shown.
1.5 - 2 kW Portable

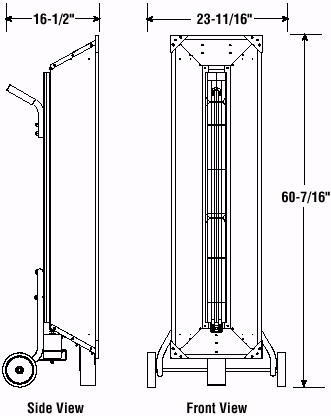

4.5 kW Portable
6 kW Portable
13.5 kW Portable

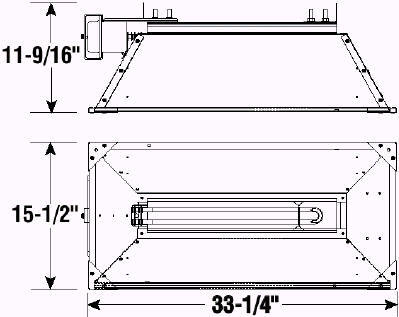

2kW Fixed

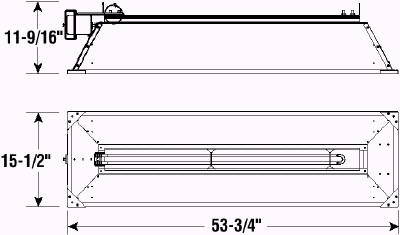

4.5 kW Fixed
|
Secure online Credit Card ordering - SSL encryption.
Delivery times:
For heaters or accessories with a stock status of S (Stock): Typically in
5-7 workdays
or less plus allow additional time for your selected UPS or FedEx shipping method.
For heaters or accessories with a stock status of AS (Assembly Stock):
Typically in 8-17 workdays or less plus allow additional time for your selected UPS or FedEx shipping method. For heaters or accessories with a
stock status of NS (Non Stock): Typically in 25-27 workdays or less plus allow additional time for your selected UPS or FedEx shipping method.
Price below does not include shipping cost which is
calculated using your address before entering your credit card number.
Portable Heaters: |
|
PCN# |
Catalog No. |
kW |
Volts |
Phase |
Amps |
Btuh |
Height |
Base Width |
Base Depth |
Stock Status |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
CHROM340486 |
STAR-02A-11-PC |
1.5 |
120 |
1 |
12.5 |
5,118 |
35-3/16 |
13 |
15-15/16 |
ST |
$332.00 |
 |
|
CHROM340494 |
STAR-02A-81-P |
2 |
208 |
1 |
9.6 |
6,824 |
35-3/16 |
18 |
15-15/16 |
NS |
$299.00 |
|
|
CHROM340507 |
STAR-02A-21-P |
2 |
240 |
1 |
8.3 |
6,824 |
35-3/16 |
18 |
15-15/16 |
AS |
$299.00 |
|
|
CHROM340515 |
STAR-02A-71-P |
2 |
277 |
1 |
7.2 |
6,824 |
35-3/16 |
18 |
15-15/16 |
NS |
$299.00 |
|
|
CHROM340523 |
STAR-02A-41-P |
2 |
480 |
1 |
4.2 |
6,824 |
35-3/16 |
18 |
15-15/16 |
ST |
$299.00 |
|
|
CHROM340531 |
STAR-02A-61-P |
2 |
600 |
1 |
3.3 |
6,824 |
35-3/16 |
18 |
15-15/16 |
NS |
$299.00 |
|
|
CHROM340380 |
STAR-05A-81-P |
4.5 |
208 |
1 |
21.6 |
15,354 |
60-7/16 |
23-11/16 |
16-1/2 |
NS |
$422.00 |
|
|
CHROM340398 |
STAR-05A-21-P |
4.5 |
240 |
1 |
18.8 |
15,354 |
60-7/16 |
23-11/16 |
16-1/2 |
NS |
$422.00 |
|
|
CHROM340400 |
STAR-05A-71-P |
4.5 |
277 |
1 |
16.2 |
15,354 |
60-7/16 |
23-11/16 |
16-1/2 |
NS |
$422.00 |
|
|
CHROM340419 |
STAR-05A-41-P |
4.5 |
480 |
1 |
9.4 |
15,354 |
60-7/16 |
23-11/16 |
16-1/2 |
ST |
$422.00 |
|
|
CHROM340427 |
STAR-05A-61-P |
4.5 |
600 |
1 |
7.5 |
15,354 |
60-7/16 |
23-11/16 |
16-1/2 |
NS |
$422.00 |
|
Fixed Overhead Heaters:
|
PCN# |
Catalog No. |
kW |
Volts |
Phase |
Amps |
Btuh |
Height |
Base
Width |
Base
Depth |
Stock Status |
Price |
Click "Select" below to see our actual real-time quantity in stock |
| CHROM340558 |
STAR-02A-81-F |
2 |
208 |
1 |
9.6 |
6,824 |
33-1/4 |
15-1/2 |
11-9/16 |
ST |
$294.00 |
|
| CHROM340566 |
STAR-02A-21-F |
2 |
240 |
1 |
8.3 |
6,824 |
33-1/4 |
15-1/2 |
11-9/16 |
ST |
$294.00 |
|
| CHROM340574 |
STAR-02A-71-F |
2 |
277 |
1 |
7.2 |
6,824 |
33-1/4 |
15-1/2 |
11-9/16 |
AS |
$294.00 |
|
| CHROM340582 |
STAR-02A-41-F |
2 |
480 |
1 |
4.2 |
6,824 |
33-1/4 |
15-1/2 |
11-9/16 |
ST |
$294.00 |
|
| CHROM340590 |
STAR-02A-61-F |
2 |
600 |
1 |
3.3 |
6,824 |
33-1/4 |
15-1/2 |
11-9/16 |
NS |
$294.00 |
|
| CHROM340435 |
STAR-05A-81-F |
4.5 |
208 |
1 |
21.6 |
15,354 |
53-3/4 |
15-1/2 |
11-9/16 |
AS |
$365.00 |
|
| CHROM340443 |
STAR-05A-21-F |
4.5 |
240 |
1 |
18.8 |
15,354 |
53-3/4 |
15-1/2 |
11-9/16 |
NS |
$365.00 |
|
| CHROM340451 |
STAR-05A-71-F |
4.2 |
277 |
1 |
16.2 |
15,354 |
53-3/4 |
15-1/2 |
11-9/16 |
NS |
$369.00 |
|
| CHROM340460 |
STAR-05A-41-F |
4.5 |
480 |
1 |
9.4 |
15,354 |
53-3/4 |
15-1/2 |
11-9/16 |
ST |
$369.00 |
|
| CHROM340478 |
STAR-05A-61-F |
4.5 |
600 |
1 |
7.5 |
15,354 |
53-3/4 |
15-1/2 |
11-9/16 |
NS |
$369.00 |
|
| CHROM340339 |
STAR-06A-83-F |
6 |
208 |
3 |
16.7 |
20,472 |
30-1/2 |
23-3/4 |
11-1/2 |
ST |
$514.00 |
|
| CHROM340347 |
STAR-06A-23-F |
6 |
240 |
3 |
14.4 |
20,472 |
30-1/2 |
23-3/4 |
11-1/2 |
AS |
$514.00 |
|
| CHROM340355 |
STAR-06A-71-F |
6 |
277 |
1 |
21.7 |
20,472 |
30-1/2 |
23-3/4 |
11-1/2 |
AS |
$514.00 |
|
| CHROM340363 |
STAR-06A-43-F |
6 |
480 |
3 |
7.2 |
20,472 |
30-1/2 |
23-3/4 |
11-1/2 |
ST |
$514.00 |
|
| CHROM340371 |
STAR-06A-63-F |
6 |
600 |
3 |
5.8 |
20,472 |
30-1/2 |
23-3/4 |
11-1/2 |
AS |
$514.00 |
|
| CHROM340232 |
STAR-14A-83-F |
13.5 |
208 |
3 |
37.5 |
46,062 |
59-1/2 |
27-7/8 |
15-1/8 |
ST |
$759.00 |
|
| CHROM340240 |
STAR-14A-23-F |
13.5 |
240 |
3 |
32.5 |
46,062 |
59-1/2 |
27-7/8 |
15-1/8 |
ST |
$759.00 |
|
| CHROM340259 |
STAR-14A-71-F |
13.5 |
277 |
1 |
48.7 |
46,062 |
59-1/2 |
27-7/8 |
15-1/8 |
AS |
$759.00 |
|
| CHROM340267 |
STAR-14A-43-F |
13.5 |
480 |
3 |
16.3 |
46,062 |
59-1/2 |
27-7/8 |
15-1/8 |
ST |
$759.00 |
|
| CHROM340275 |
STAR-14A-63-F |
13.5 |
600 |
3 |
13 |
46,062 |
59-1/2 |
27-7/8 |
15-1/8 |
AS |
$759.00 |
|
Accessories
Portable Kits:

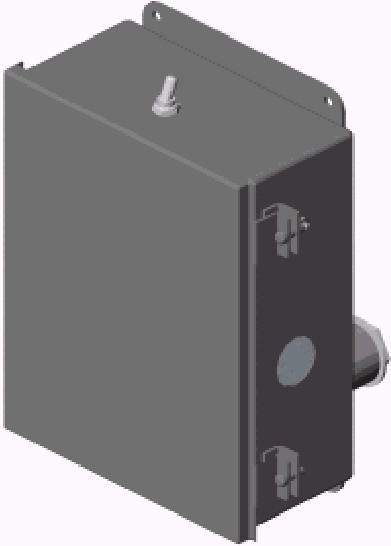

Tip Over Switch Kits
Chromalox STARTIP tip-over switch kits can be
easily added to all Chromalox STAR 06 or 14 series
factory assembled portable heaters or fixed overhead
heaters which have been modified by use of a portable
STAR-CART kit. This kit is designed to de-energize the heating elements of unattended units in event
the heater is accidentally knocked over. The kit
includes a control circuit transformer, magnetic
contactor, tip-over switch assembly and on-off toggle
switch with rubber boot, completely prewired in a NEMA
4 enclosure. The kit also includes a 1"
coupling, wiring between the contactor and heater,
mounting bracket, hardware and instructions to complete the installation to the heater.

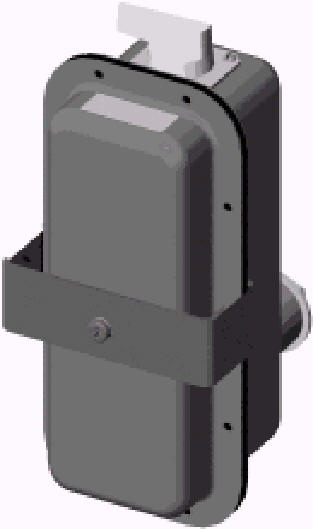

Tip-Over Switch and Ground Fault Detector Kits
(for Portable STAR-06 and STAR-14 Heaters)
The Chromalox STAR-TG series kits include the components and features of the
STARTIP tip-over kits with the additional protection
provides by a ground fault detector. The ground fault
detector will monitor for any gradual changes in the insulation level due to
humidity or mechanical damage as they develop and will
de-energize the contactor to prevent arcing type
faults, preventing premature element failure and potential fire damage.
Plug Kits for Portable Heaters
PGL-15-20 |
PGL-15-30 |
PGL-16-30 |
PGL-17-30 |
PGL-3763C |
PGL-3764C |
PGN-6-50 |
PGN-15-20 |
PGN-15-50 |
|
|
PCN# |
Catalog No. |
Plug Type |
Description
|
Volts
|
Amps
|
NEMA#
|
ANSI#
|
Cable Dia |
Stock Status |
Price |
Click "Select" below to see our actual real-time quantity in stock |
| CHROM338845 |
PGL-15-20 |
Locking |
3 Pole,
4Wire |
250 |
20 |
L15-20 |
C73.85 |
.385”-.780 |
NS |
$80.60 |
|
| CHROM338853 |
PGL-15-30 |
Locking |
3 Pole,
4 Wire |
250 |
30 |
L15-30 |
C73.86 |
.385”-.780 |
NS |
$96.50 |
|
| CHROM338861 |
PGL-16-30 |
Locking |
3 Pole,
4 Wire |
480 |
30 |
L16-30 |
C73.88 |
.595”-1.150 |
ST |
$96.50 |
|
| CHROM338870 |
PGL-17-30 |
Locking |
3 Pole,
4 Wire |
600 |
30 |
L17-30 |
C73.89 |
.595”-1.150 |
NS |
$97.55 |
|
| CHROM338917 |
PGL-3763C |
Locking |
2 Pole, 3
Wire |
600 |
50 |
- |
- |
.750”-1.125 |
NS |
$267.00 |
|
| CHROM338888 |
PGN-6-50 |
Non Locking |
2 Pole, 3
Wire |
250 |
50 |
6-50 |
C73.53 |
.625”-1.187 |
ST |
$188.00 |
|
| CHROM338896 |
PGN-15-20 |
Non Locking |
3 Pole, 4
Wire |
250 |
20 |
15-20 |
C73.59 |
.390”-.775 |
NS |
$126.00 |
|
| CHROM338909 |
PGN-15-50 |
Non Locking |
3 Pole, 4
Wire |
250 |
50 |
15-50 |
C73.61 |
.750”-1.250 |
NS |
$176.00 |
|
Cable Kits for ChromaStar™ Series Portable Radiant Heaters
Cable packages include 25 feet Type SO cable, with either 3-conductors or
4-conductors, depending on the heater requirements.
Each cable assembly includes the proper cord
(connector). Plugs are not included. All models are factory wired for 3-phase,
but can be field wired for single phase, select plug
and cord accordingly.
|
PCN# |
Catalog No. |
Size/Type |
Max. Amp |
Temperature
Ratings |
NPT
|
Stock Status |
Price |
Click "Select" below to see our actual real-time quantity in stock |
| CHROM295427 |
PLC-2514-4 |
14/4 SO |
15 |
90 Deg.C |
3/4” |
ST |
$84.80 |
|
| CHROM295670 |
PLC-2514-3 |
14/3 SO |
18 |
90 Deg.C |
3/4” |
NS |
$65.00 |
|
| CHROM295435 |
PLC-2512-4 |
12/4 SO |
20 |
90 Deg.C |
1” |
ST |
$95.40 |
|
| CHROM295662 |
PLC-2512-3 |
12/3 SO |
25 |
90 Deg.C |
3/4” |
NS |
$75.00 |
|
| CHROM295443 |
PLC-2510-3 |
10/3 SO |
30 |
90 Deg.C |
1” |
NS |
$97.55 |
|
| CHROM295460 |
PLC-2508-3 |
8/4 SO |
35 |
90 Deg.C |
1” |
ST |
$130.00 |
|
| CHROM295494 |
PLC-2506-4 |
6/4 SO |
45 |
90 Deg.C |
1” |
ST |
$214.00 |
|
| CHROM295486 |
PLC-2506-3 |
6/3 SO |
55 |
90 Deg.C |
1” |
St |
$181.00 |
|
SO = hard Service Cord, 600V Length = 25 Feet
Replacement Elements (UTU-Star)
|
PCN# |
Catalog No. |
KW |
Volts |
Win2 |
Dimension A |
Dimension B |
Stock Status |
Price |
Click "Select" below to see our actual real-time quantity in stock |
|
CHROM106059 |
| |
