Qmark Infrared Bath
Heat Lamps and Bath Fan Heat Lamps
We are an authorized distributor for Qmarkฎ.
 |
 UL Listed I.C. for Insulated Ceilings
|
|
White Finish |
|
120 Volts
|
|
A luxury
found in hotels. A heat lamp in a ceiling fixture
provides the ultimate in warmth and
comfort. |
|
*** These units are NOT to
be installed over a tub or in a shower stall enclosure. ***
|
|
A564 |
Up to 375 Watt, R40 Infrared Heat Lamp Provides Instant
Warmth (lamp not included, can be ordered below)
Inside Reflective Lamp Surface That Directs Gentle Heat Rays Downward
Spring Loaded, Easy-On, Easy-Off Grill
Easy 4-Point Mounting System Installation
Junction Box Easy to Access
Use With Conventional Wall Switch
Also Available as Type Non-I.C., 250 Watt for Use In Non-Insulated
Ceilings (Model A535) |
|
B560 |
Up to 375 Watt, R40 Infrared Heat Lamp Provides Instant
Warmth (lamp not included, can be ordered below)
Inside Reflective Lamp Surface That Directs Gentle Heat Rays Downward
Spring Loaded, Easy-On, Easy-Off Grill
Easy 4-Point Mounting System Installation
Junction Box Easy to Access
Use With Conventional Wall Switch
4 Duct Adapter With Back Draft Damper
Long Life Permanently Lubricated Motor
Exhaust fan
|
|
HVI CERTIFIED RATINGS
|
|
CFM
|
SONES
|
SQ. FEET
|
|
BATH
|
OTHER
|
|
70
|
5.5
|
65
|
85 |
|
B674W |
Turns the Coldest, Most Damp Bathroom Into a Warm,
Comfortable Room
Instantly Provides Up to 750 Watts of Gentle Heat
Uses Two R40 Lamps Up to 375 Watts (2560 BTU) (lamps not included,
can be ordered below)
Wired for Switch, Timer or Single Pole Thermostat Operation
Easy Installation With Mounting to Either 16 or 24 O.C. Joists With
Rigid, 4-Point Mounting System
Use With Conventional Wall Switch or Timer |
|
B660W |
Turns the Coldest, Most Damp Bathroom Into a Warm,
Comfortable Room
Instantly Provides Up to 750 Watts of Gentle Heat
Uses Two R40 Lamps Up to 375 Watts (2560 BTU) (lamps not included,
can be ordered below)
Wired for Switch, Timer or Single Pole Thermostat Operation
Easy Installation With Mounting to Either 16 or 24 O.C. Joists With
Rigid, 4-Point Mounting System
Use With Conventional Wall Switch or Timer
4 Duct Adapter
Long Life, Permanently Lubricated, Shaded Pole Motor
Large Venturi Assures Quiet, Efficient Ventilation
Exhaust fan
|
|
HVI CERTIFIED RATINGS
|
|
CFM
|
SONES
|
SQ. FEET
|
|
BATH
|
OTHER
|
|
70
|
4.0
|
55
|
75 |

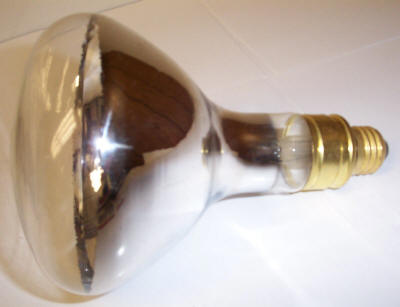

Philips 375 Watt 120 Volt R40 Clear Bulb Medium Skirted Base
Infrared Heat Lamp with Edison Screw Base
| Catalog #:
375R40/1 120V |
| NOTE: Designed for service other than illumination. |
| 120 Volts,
375 Watts |
Philips 250 Watt 120 Volt R40
Red Bowl Hardglass Reflector Bulb Medium Base
Infrared Heat Lamp with Edison Screw Base
|
250R40/HR (Heat Lamp, Red) |
|
250 Watt, 120 Volt BR40 Red Heat Lamp
Reflector Bulb |
|
|
Philips 250W, 120V, Red Bowl,
Medium Screw Base, R-40 Reflector Infrared Flood Heat Ray Lamp (dia.
5", length 6 7/8"), Sold Individually |
| General Information |
| Ordering Code |
250R40/HR (Heat Lamp, Red) |
| |
|
| Energy Used |
250
Watts |
| Volts |
120 |
|
| Bulb Shape |
BR-40 |
| Base |
Medium
(E26) |
| Class and Filament |
C, C-9 |
|
| Diameter (in) |
5.000 |
| Length (in) |
6.880 |
| Average Rated Life (hr) |
5,000 |
|
|
|
Catalog #:
250R40/10 120V |
|
NOTE:
Designed for service other than illumination. |
|
120
Volts,
250
Watts |
|
Secure Online Ordering
*Delivery time: typically ships in 1 working day or less plus the time
of your selected UPS shipping method. Your shipping cost will be displayed in your shopping cart. |
| Item
ID |
Catalog
#
|
Lamp Watts
|
Duct Size |
Rough-In
Opening |
Amps
|
Price |
Click "Select" below to see the actual quantity in stock |
| QMARK30315017646 |
A564 |
375 maximum
|
N/A
|
8-1/2" x 9-1/4"
|
3.33 |
$40.35 |
 |
| QMARK30315045953 |
A535 |
250 maximum
|
N/A
|
8-1/2" x 9-1/4"
|
2.22 |
$33.45 |
|
| QMARK30315020233 |
B674W |
2 @ 375
maximum
|
N/A
|
8-1/2" x 14-5/16"
|
6.50 |
$63.60 |
|
| QMARK30315029786 |
B660W
|
2 @ 375
maximum
|
4"
|
8-1/2" x 14-5/16"
|
7.35
|
$75.00 |
|
| QMARK30315029793 |
B560
|
375 maximum
|
4"
|
8-1/2" x 9-1/4"
|
4.11
|
$60.30 |
|
| Heat Lamps: |
|
|
Description |
|
|
| SYLVANIA10001 |
375R40/1 120V |
375 |
R40 Infrared Clear Heat Lamp Bulb |
$17.11 |
|
| SYLVANIA10002 |
250R40/10 120V |
250 |
R40 Infrared Red Heat Lamp Bulb |
$14.99 |
|
|
*This delivery time is for normal conditions and is subject to factory availability. |
Qmarkฎ is a registered
trademark of Marley Engineered Products.
|
