Salamander
ALEX (Aluminum
Extrusion) Reflector Assembly Housing for Ceramic Infrared Heaters
En Español
We also manufacture:
Custom size reflectors manufactured to your desired size
and specifications.
CRP panels - modular 12" x 12"
with LTE heaters

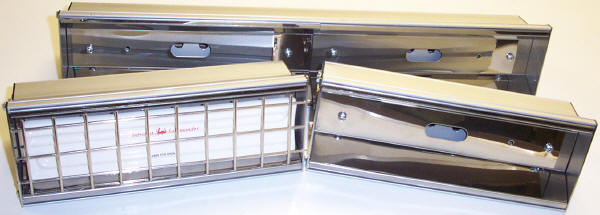

Our standard ALEX reflectors are a
complete reflector assembly with reflector, outer case and terminal blocks
and they can be mounted in any direction, or side by side to make a
larger panel. They are pre-wired for FTE
or HTE type
ceramic emitters and cannot be used with our FFE, HFE, QFE,
HSE or LTE type ceramic emitters. They require at least the standard 6"
(152.4mm) leads with pin terminals. The outer case is extruded aluminum and the reflector is
polished stainless steel. Our
replaceable thermocouple does not fit in our ALEX reflector
assemblies. Use our FRK
thermocouple instead.

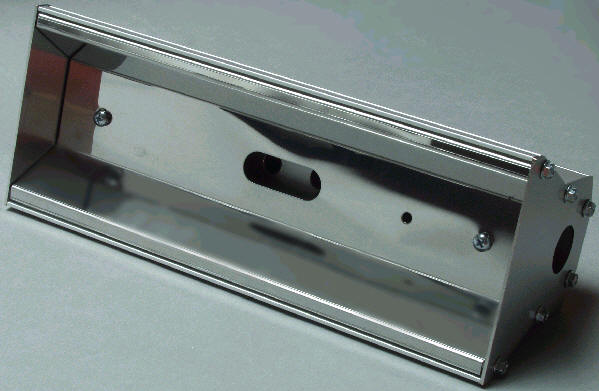

ALEX/F (Holds one
FTE heater):
Click here for a larger image

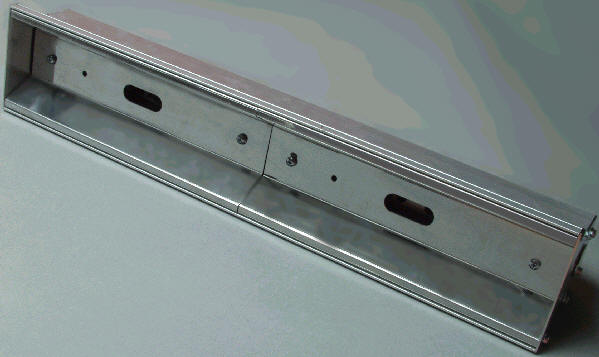

ALEX/FF (Holds two
FTE heaters):
Click here for a larger image

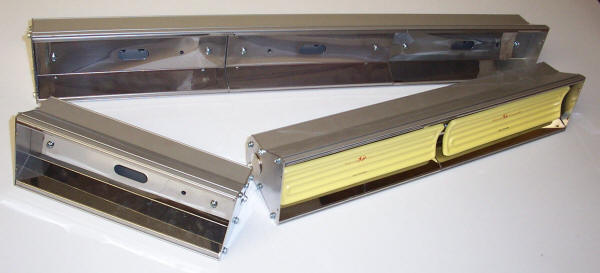

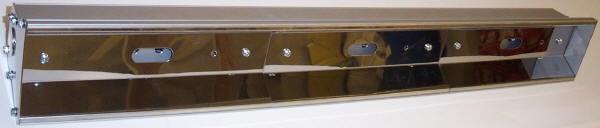

ALEX/FFF (Holds three
FTE heaters)
The electrical conduit can be connected to either
end since they have a removable hole plug in the end cap. There is a green
ground screw in the terminal connection area and one or more TB-2 terminal block
connections which require heaters with at least 6" (152.4
mm) leads.
 |
Position adjustable mounting style.
|
|
1/2" conduit knockout.
|
|
More durable and sturdy extruded aluminum.
|
|
Stainless steel reflectors resist corrosion
better.
|
Built-in interlocking channel
A channel on each side of the
extrusion allows them to be interlocked
together using 16 gauge sheet metal. By customizing the size of the sheet
metal pieces, and the angles that they are placed, an oven can be constructed.

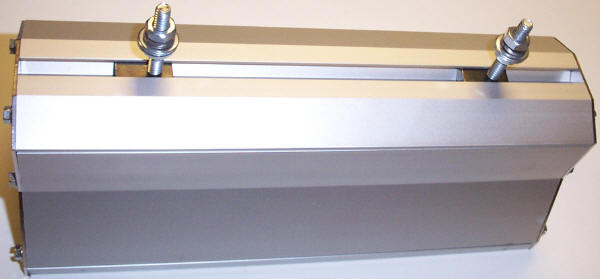

Mounting System
Standard mounting via a 1/4-20x1.5
stud, 2 hex nuts,
lock washer
and 2 washers:
Click here for a larger image
 |
Adjustment for mounting hole spacing is possible because the
stud screws into a t-slot nut
with a ball/spring,
which slides in the groove of the top terminal cover extrusion. |

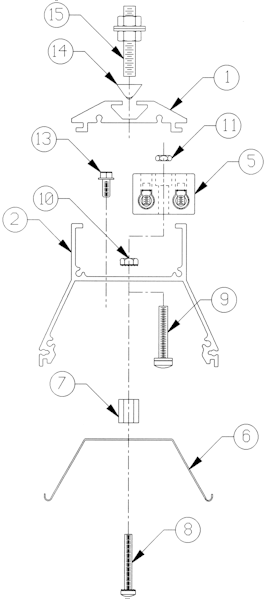

Parts Breakdown
1. Alex: Terminal Cover Extrusion
2. Alex: H Section Extrusion
3. Alex: End Cap
4. Alex: Hole Plug For End Cap
5. TB-2 Ceramic Terminal Block
6. Alex: Ref-1 (Reflector)
7. Stand-Off
8. Screw: #8-32xl.25"
9. Screw: M5x30
10. Hex Nut: #8
11. Hex Nut: M5
12. Screw: #8x.25 Type-B
13. Green Ground Screw: #10-32x.375
14. 1/4-20 T-Slot Nut With Ball/Spring
15. 1/4-20x1.5 Stud, Hex Nuts And Washers
Dimensions:
Click here for a larger image
|
ALEX-F
|
A = 10" (254 mm) long
for one
FTE heater
|
|
ALEX-FF
|
A = 19 7/8" (505 mm) long for two
FTE heaters
|
|
ALEX-FFF
|
A = 29 3/4" (756 mm) long for
three
FTE heaters
|
|
ALEX-FFFF
|
A = 39 5/8" (1006 mm) long for
four
FTE heaters
|
|
ALEX-FFFFF
|
A = 49 1/2" (1257 mm) long for
five
FTE heaters
|
|
ALEX-FFFFFF
|
A = 59
3/8" (1508 mm) long for
six
FTE heaters
|
| ALEX-H |
A = 5 1/16" (129 mm) long
for one HTE heater
|

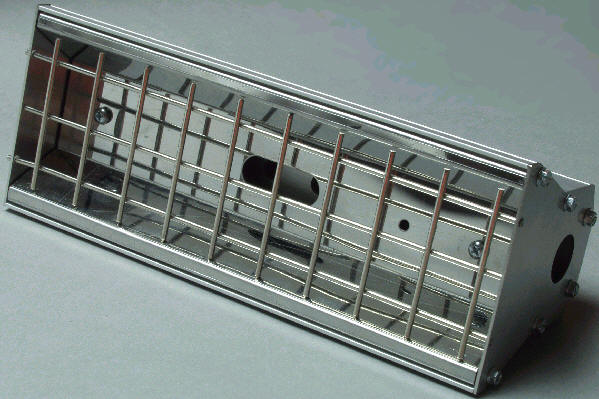

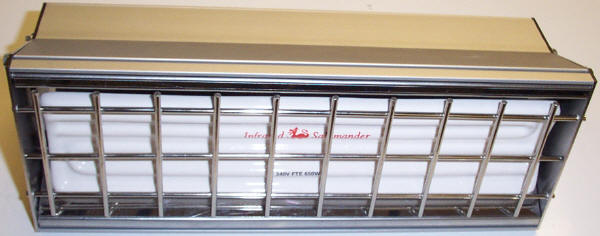

Optional Wire Guards for ALEX reflectors
Click here for a
larger image
Wire guard protection in appropriate lengths
for ALEX-F, ALEX-FF, ALEX-FFF and ALEX-H are available
to protect the heaters from damage.
| ALEX-GUARD-F |
10" (254 mm) for an ALEX-F |
| ALEX-GUARD-FF |
19 7/8" (505 mm) for an ALEX-FF |
| ALEX-GUARD-FFF |
29 3/4" (756 mm) for an ALEX-FFF |
| ALEX-GUARD-H |
5 1/6" (129
mm) for an ALEX-H |
|
Optional Controls and Accessories: |
 |
Payne Engineering 18TP-1-15,
120 Volt, Variable Voltage Control.
Portable solid state power control, single-phase, 50/60 Hz input, 15
amp fuse, 6 foot plug & cordset.
All solid state construction. Lighted on/off rocker power
switch. 270° turn potentiometer variable control of output
voltage: 0-95% of input. On-board "2 millisecond" fuse self-
protection. |
 |
Payne Engineering 18TP-2-15,
240 Volt, Variable Voltage Control. Portable solid state power
control. single-phase, 15 amp fuse, 6 foot plug & cordset. 3600 watts
@ 240 volts (maximum rated voltage). All
solid state construction. Lighted on/off rocker power switch.
270° turn potentiometer variable control of output voltage: 0-95% of
input. On-board "2 millisecond" fuse self- protection. |
|
|
Payne Engineering 18TBP-1-15,
120 VAC Input, Variable Temperature Controller adjusts heat output from
0-100%. 0-118 VAC Output, 50/60Hz.
Payne Engineering 18TBP-2-15,
240 VAC Input, Variable Temperature Controller adjusts heat output
from 0-100%. 0-235 VAC Output, 50/60Hz (Also for 220/230 VAC Input)
|
 |
Chromalox
CH Infinite Control Mechanism.
Up to 15 Amps on 120 or 240 Vac.
(1,800 & 3,600 Watts)
0-100% of wattage with infinite control over the first 50% of total wattage.
Energized continuously in HI position, at other settings it delivers selected input level under control of a simple bimetal timer. |
 |
Chromalox VCF
Percentage Timing Input Controller. Flush
mounted controller. Motor Driven Cycling Device, 115 & 230 Vac, 20 &
25 Amp Capacity. Percentage timing can be set to energize a heater
for a chosen percentage (4-100%) of a preset 15 or 30 second cycle. |
 |
Chromalox
1601E 1/16 DIN Digital Temperature Control with
Configuration Port. Built-in Programming
Port for Remote for OEM Fast Configuration. Programming w/o Internal Hardware Switch. SMART Self-Tuning with
Fuzzy Logic. Heat, Cool
or Heat/Cool Control Capability.
Universal Inputs TC, RTD. Soft Start Power
Limiting on Power-Up |
 |
Chromalox 1603E Digital 1/16 DIN Temperature Control
with Configuration Port. Built-in Programming Port for Remote for OEM Fast
Configuration. Programming w/o Internal Hardware Switch. SMART
Self-Tuning with Fuzzy Logic. Heat, Cool or Heat/Cool Control
Capability. Universal Inputs TC, RTD. Soft Start Power Limiting on Power-Up |
 |
Chromalox 1604 1/16 DIN Temperature
Control, Dual 4-Digit Display of Process and Setpoint,
Three Outputs, Heater Breakdown Current Monitoring Alarm, Universal
Inputs: TC, RTD, Voltage and Current, SMART Self-Tuning with Fuzzy Logic,
Soft-Start Power Limiting on Power-Up. |
 |
Chromalox 2110 1/4 DIN
Temperature Control. 10 Amp Solid State Relay, 20 Amp Mechanical Relay, J, K
Thermocouple, or RTD Selectable Inputs. |
 |
Chromalox 2104 1/4 DIN Digital Temperature and Process Controller.
Dual PID & Fuzzy Logic Control, Control Loop Protection, Five
Outputs-Control, Alarm or Event. Universal Sensor Inputs: TC, RTD, Voltage
and Current. Switching Power Supply 100-240 Vac or 12-24 Vac/Vdc, 50/60 Hz. |
 |
Chromalox
3101 1/4 DIN High/Low Digital Limit Controller.
Compact,
fully programmable high or low limit controller.
One High/Low Limit Control Output. Peak Temperature Display,
Universal Sensor Inputs, Switching Power Supply 100-240 Vac or 12-24
Vac/Vdc |
 |
Mercury
Contactors/Relays
20, 35, 60, 80, 100 and 150 amp Mercury Relay Contactor Power
Controls |
 |
Avatar Instruments SCR Power Controllers.
High performance proportional controls for industrial electric heaters: 10
- 600 Amp, 24 - 600 volt, Single or three phase. |
 |
Infrared Sensors Non-contact temperature detection.
Pre-Calibrated Infrared Thermocouples, Stainless Steel, Mounting holes with
screws, Airpurge/Aircool |
 |
Electrical Power Wire
MG and TGGT sizes 4 gauge through 22 gauge, 600 volt,
842°F (450°C), fiberglass overbraid.
|
 |
Thermocouple Wire 20 gauge,
thermocouple grade stranded wire and extension grade wire
|
 |
Ceramic
Wire
Connectors. 4
different size cone connectors for high
temperature applications. Rated 300 volts maximum.
For joining solid and/or stranded wire. |
 |
Protective Sleeving (Fiberglass) Secondary insulation of electrical wires in high temperature applications. |
 |
Insulation (Ceramic Fiber)
Alumina-silica insulation. 1" or 1/4" thick x 48" wide
for use in infrared panels. Exceptional handling
strength, while being flexible and lightweight. It is rated to 2300°F (1260°C.)
|
 |
Terminal Blocks Make
wiring connections to heaters efficient and easy with a touch safe design.
1, 2, 3 or 4 Pole,
5-15 Amps.
|
|
Secure Online Ordering
Delivery time: typically ships in 1 working day or less plus the time
of your selected UPS shipping method. Your shipping cost will be displayed in your shopping cart. |
| Item
ID |
Catalog
# |
Description |
Price |
Click "Select" below to see the actual quantity in stock |
| ALEX
reflectors for FTE Size Ceramic heaters: (does not include
FTE size ceramic heaters - order separately |
|
IRALX10001 |
ALEX-F |
Aluminum
Extrusion Reflector Assembly for One
FTE Size Ceramic Heater |
$55.20 |
 |
|
IRALX10002 |
ALEX-FF |
Aluminum
Extrusion Reflector Assembly for Two
FTE Size Ceramic Heaters |
$92.64 |
|
|
IRALX10003 |
ALEX-FFF |
Aluminum
Extrusion Reflector
Assembly for Three FTE Size Ceramic Heaters |
$130.07 |
|
|
IRALX10004 |
ALEX-FFFF |
Aluminum
Extrusion Reflector Assembly for Four
FTE Size Ceramic Heaters |
$167.50 |
|
|
IRALX10005 |
ALEX-FFFFF |
Aluminum
Extrusion Reflector Assembly for Five
FTE Size Ceramic Heaters |
$207.24 |
|
|
IRALX10007 |
ALEX-FFFFFF |
Aluminum
Extrusion Reflector Assembly for
Six FTE Size Ceramic Heaters |
$262.44 |
|
|
Optional Wire Guards: |
|
IRALXG10001 |
ALEX-GUARD-F |
Wire guard for
ALEX-F Reflector Assembly |
$11.15 |
|
|
IRALXG10002 |
ALEX-GUARD-FF |
Wire guard for
ALEX-FF Reflector Assembly |
$19.95 |
|
|
IRALXG10003 |
ALEX-GUARD-FFF |
Wire guard for
ALEX-FFF Reflector Assembly |
$28.75 |
|
| ALEX
reflectors for HTE Size Ceramic heaters: (does not include
HTE size ceramic heaters - order separately |
|
IRALX10011 |
ALEX-H |
Aluminum
Extrusion Reflector Assembly for One
HTE Size Ceramic Heater |
$55.20 |
|
|
Optional Wire Guards: |
|
IRALXG10004 |
ALEX-GUARD-H |
Wire guard for
ALEX-H Reflector Assembly |
$11.15 |
|
|
The most common FTE heaters are listed
below.
Entire list of catalog#'s
for FTE
heater sizes. |
| IRCER10421 |
FTE-163-120-0-L6-WH-0 |
120 Volts, 163
Watts, White |
$31.25 |
|
| IRCER10423 |
FTE-163-240-0-L6-WH-0 |
240 Volts, 163
Watts, White |
$31.25 |
|
| IRCER10390 |
FTE-250-240-0-L6-WH-0 |
240 Volts, 250
Watts, White |
$31.25 |
|
| IRCER10433 |
FTE-400-120-0-L6-WH-0 |
120 Volts, 400
Watts, White |
$31.25 |
|
| IRCER10462 |
FTE-400-240-0-L6-WH-0 |
240 Volts, 400
Watts, White |
$31.25 |
|
| IRCER10487 |
FTE-500-120-0-L6-WH-0 |
120 Volts, 500
Watts, White |
$31.25 |
|
| IRCER10500 |
FTE-500-240-0-L6-WH-0 |
240 Volts, 500
Watts, White |
$31.25 |
|
| IRCER10534 |
FTE-650-120-0-L6-WH-0 |
120 Volts, 650
Watts, White |
$31.25 |
|
| IRCER10552 |
FTE-650-240-0-L6-WH-0 |
240 Volts, 650
Watts, White |
$31.25 |
|
| IRCER10553 |
FTE-650-240-0-L6-Y-0 |
240 Volts, 650
Watts, Yellow |
$31.25 |
|
| IRCER10572 |
FTE-650-480-0-L6-WH-0 |
480 Volts, 650
Watts, White |
$31.25 |
|
| IRCER10573 |
FTE-650-480-0-L6-Y-0 |
480 Volts, 650
Watts, Yellow |
$31.25 |
|
| IRCER11499 |
FTE-750-120-0-L6-WH-0 |
120 Volts, 750
Watts, White |
$31.25 |
|
| IRCER10286 |
FTE-1000-240-0-L6-WH-0 |
240 Volts, 1000 Watts, White |
$31.25 |
|
| IRCER10287 |
FTE-1000-240-0-L6-Y-0 |
240 Volts, 1000 Watts, Yellow |
$31.25 |
|
| IRCER10302 |
FTE-1000-480-0-L6-WH-0 |
480 Volts,
1000 Watts, White |
$31.25 |
|
|
The most common HTE heaters are listed
below.
Entire list of catalog#'s
for HTE heater sizes. |
| IRCER11239 |
HTE-325-240-0-L6-WH-0 |
240 Volts, 325
Watts, White |
$28.75 |
|
| IRCER11318 |
HTE-500-240-0-L6-WH-0 |
240 Volts, 500
Watts, White |
$28.75 |
|
|
